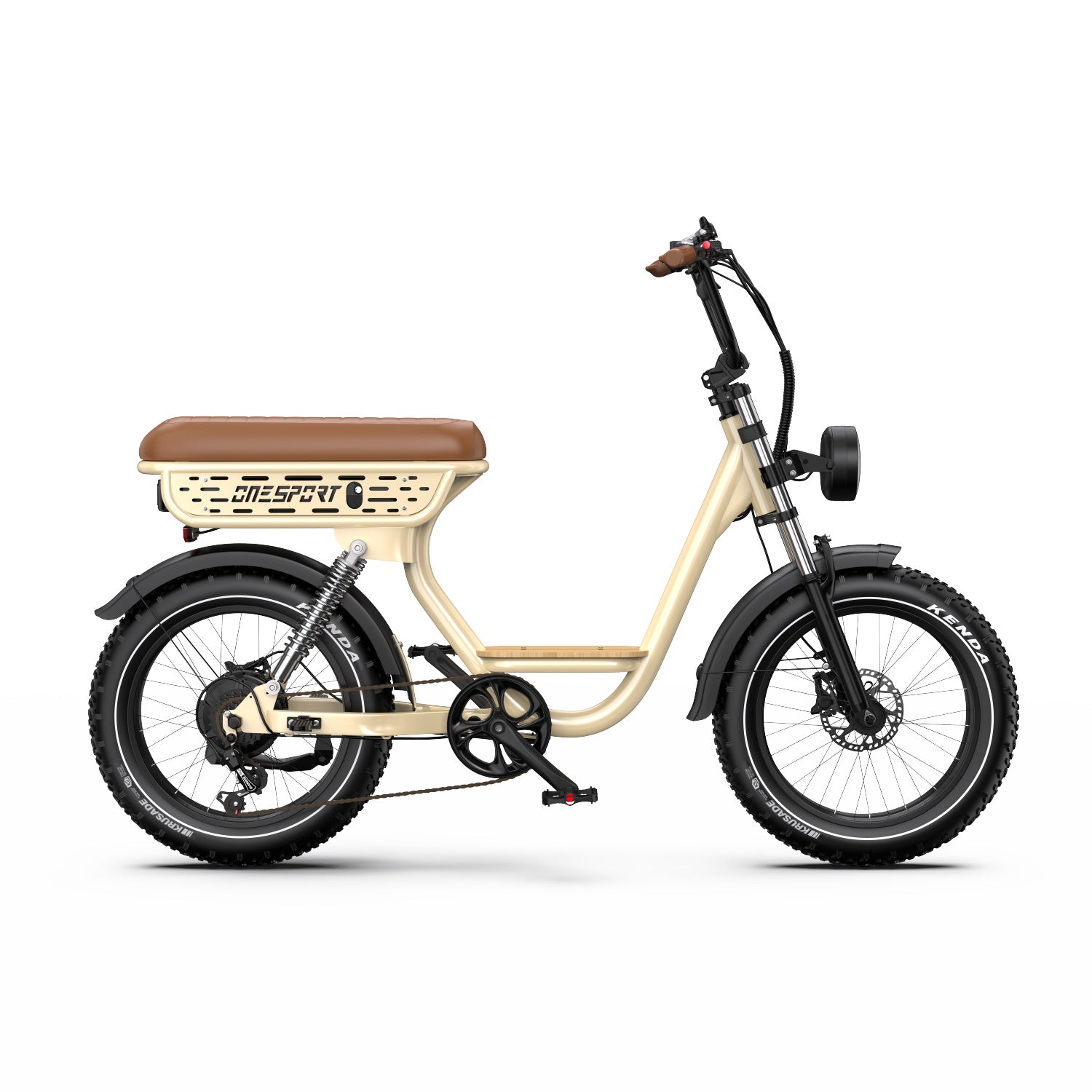

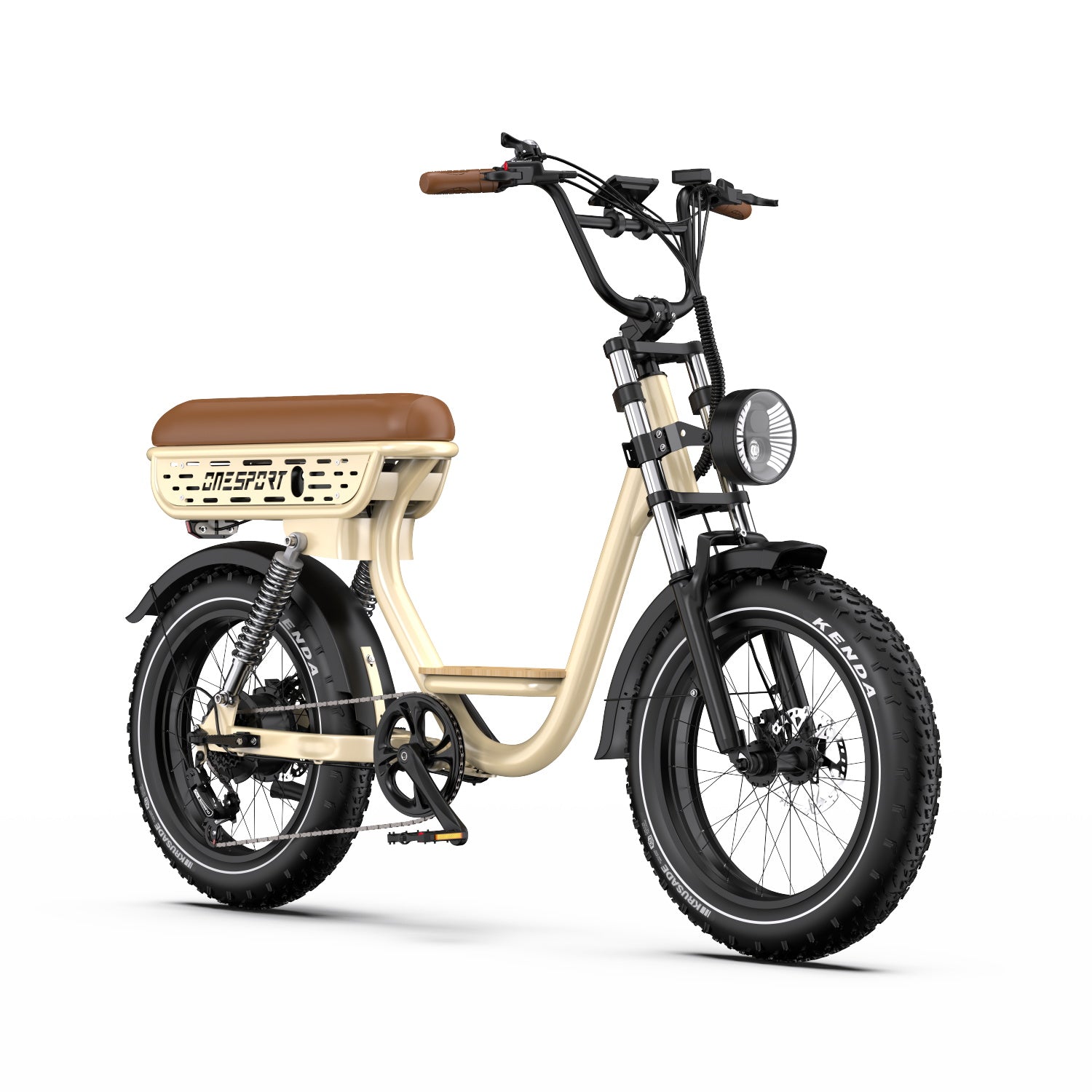

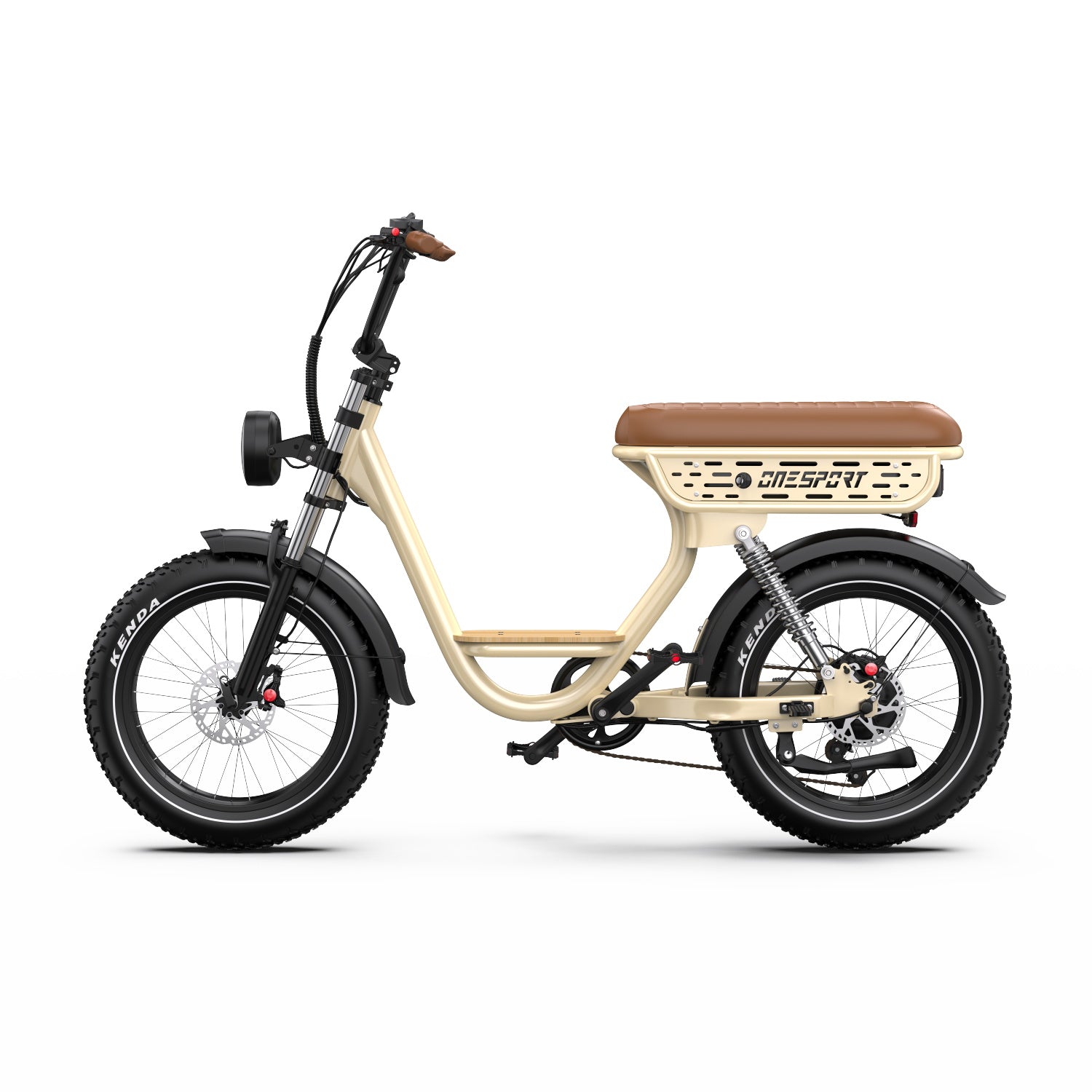

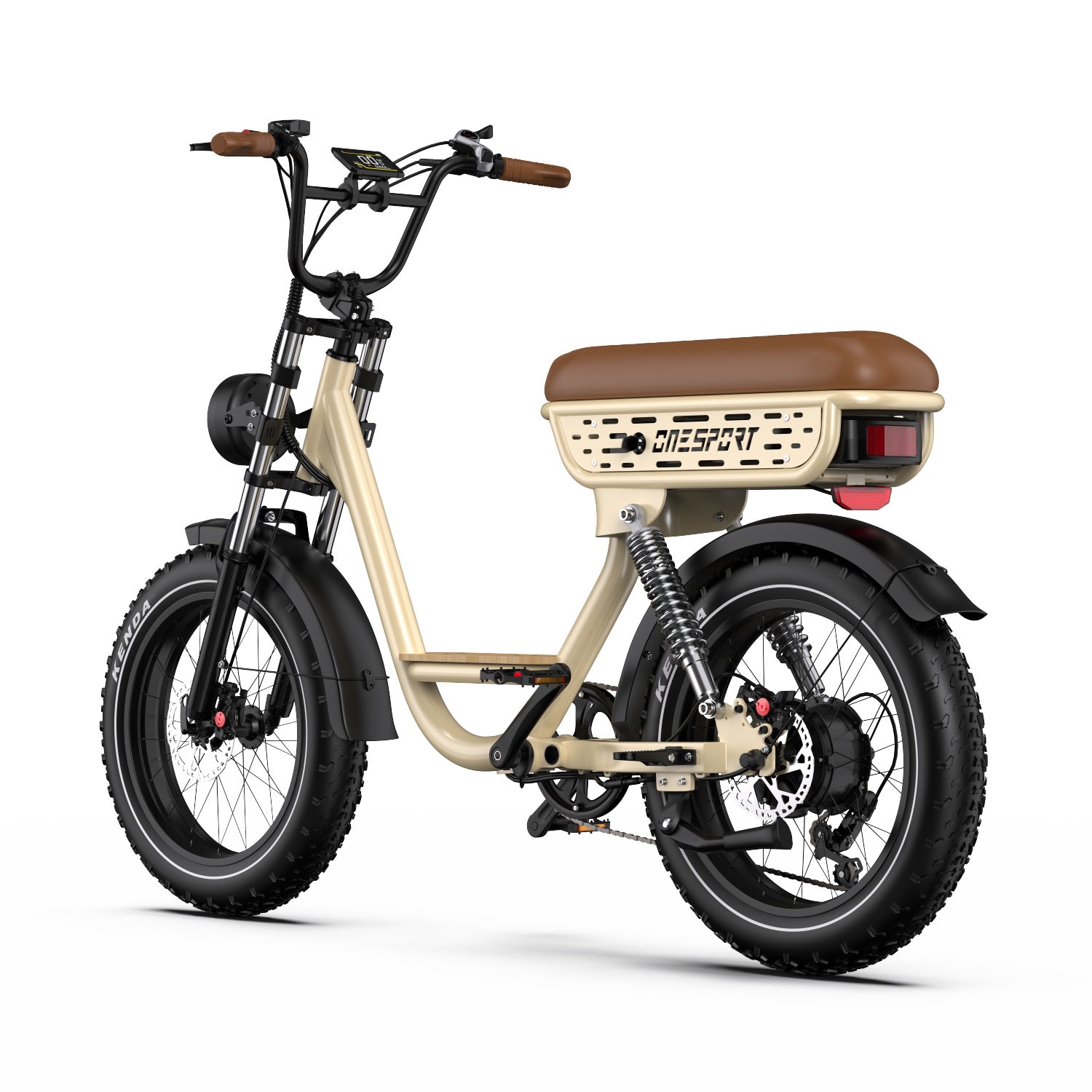

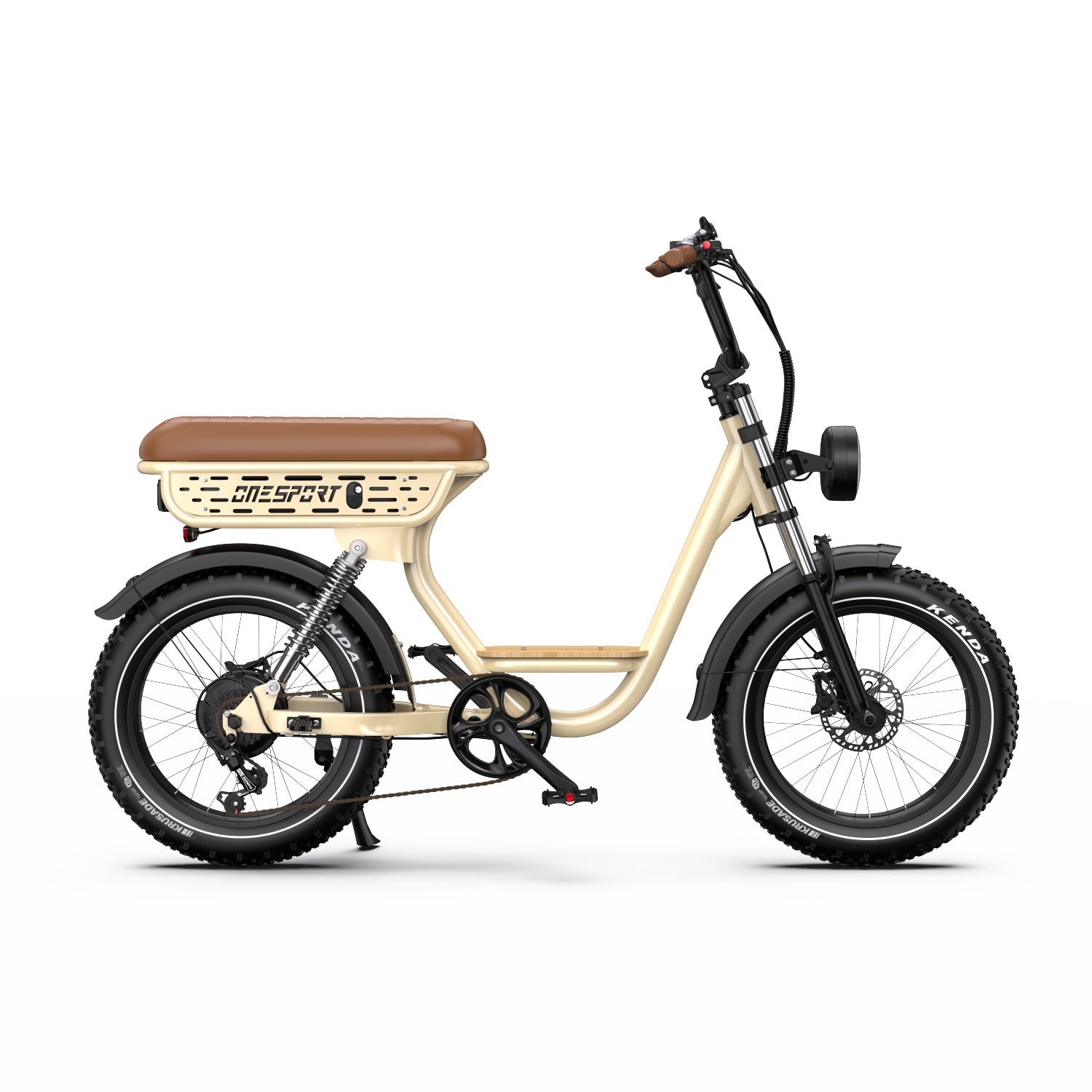

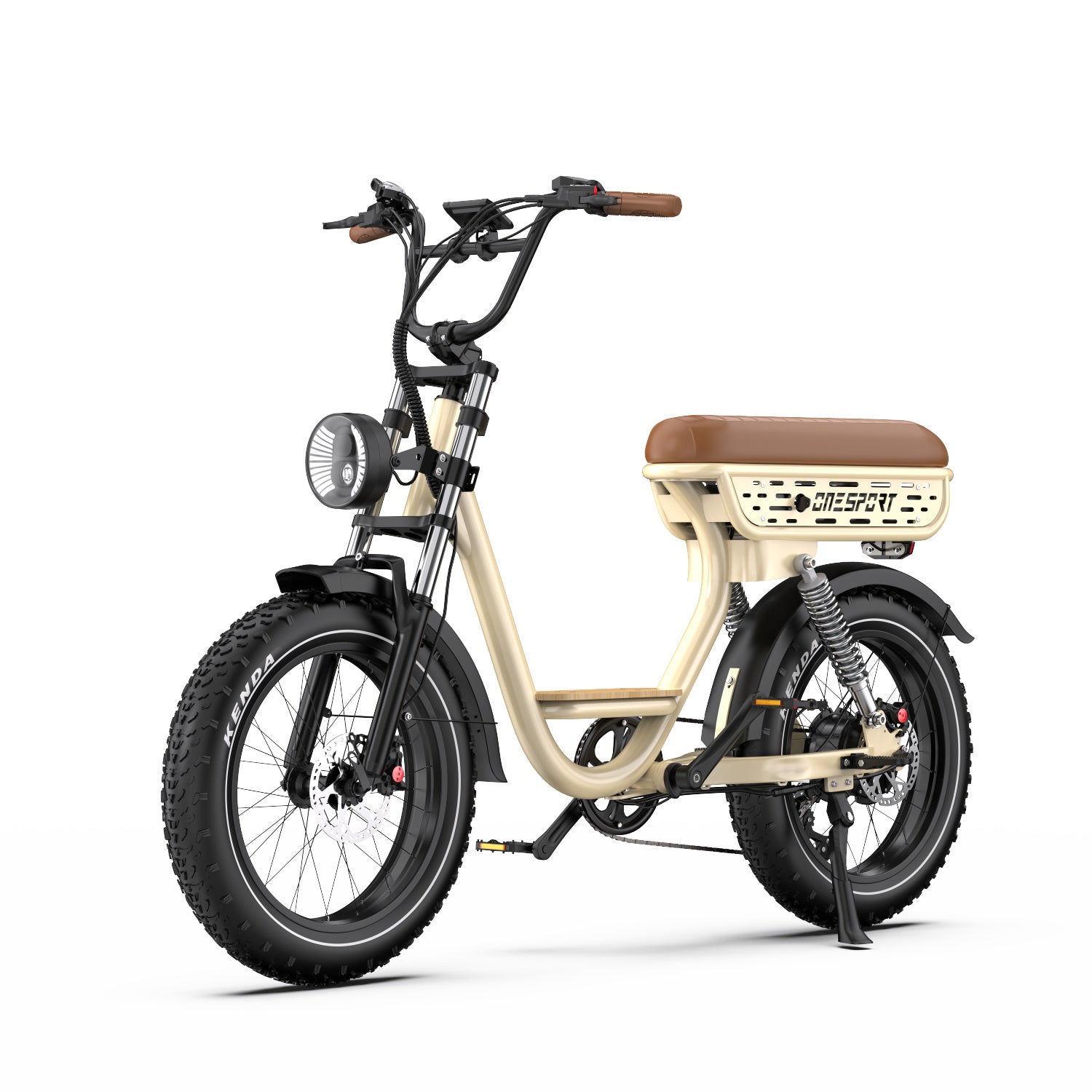

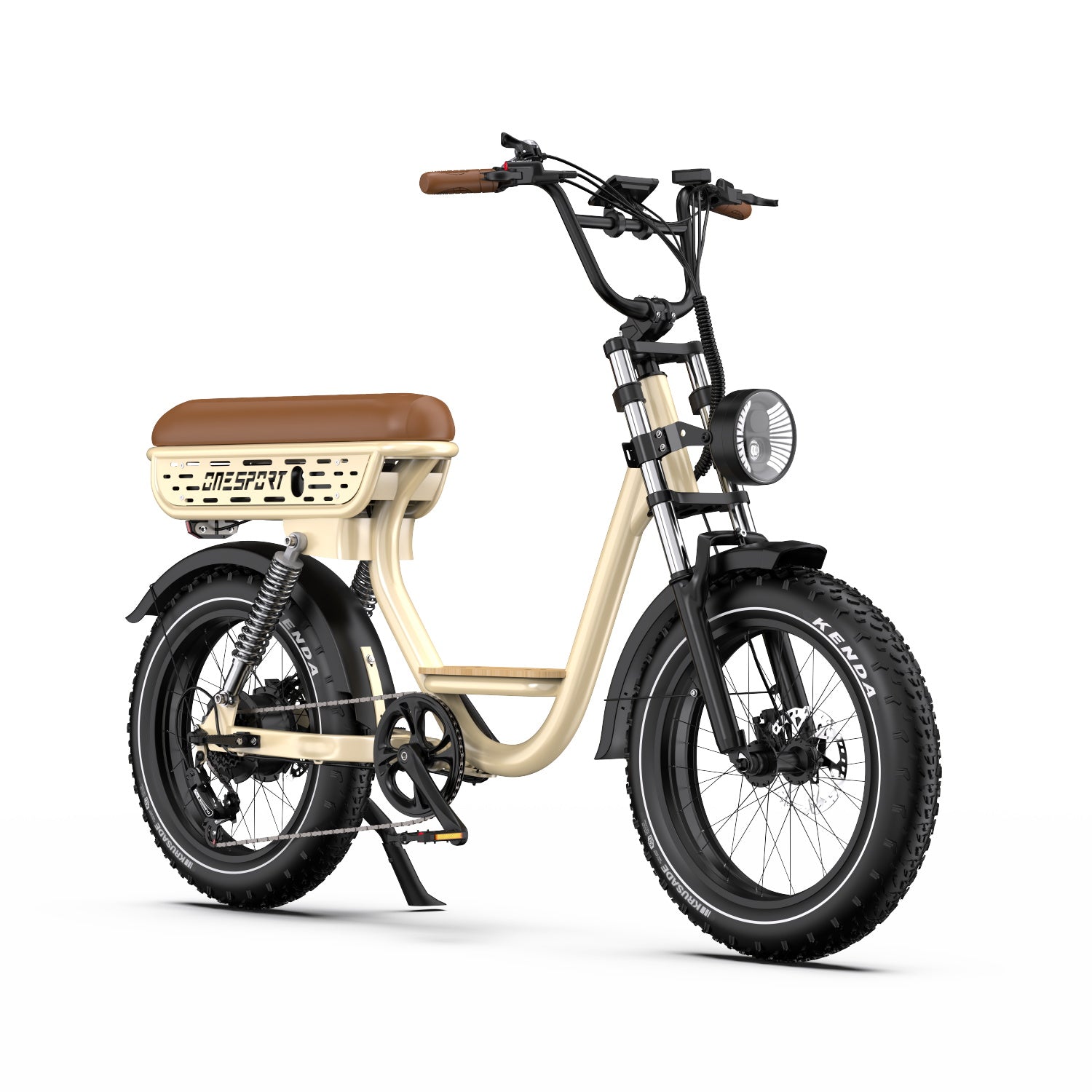

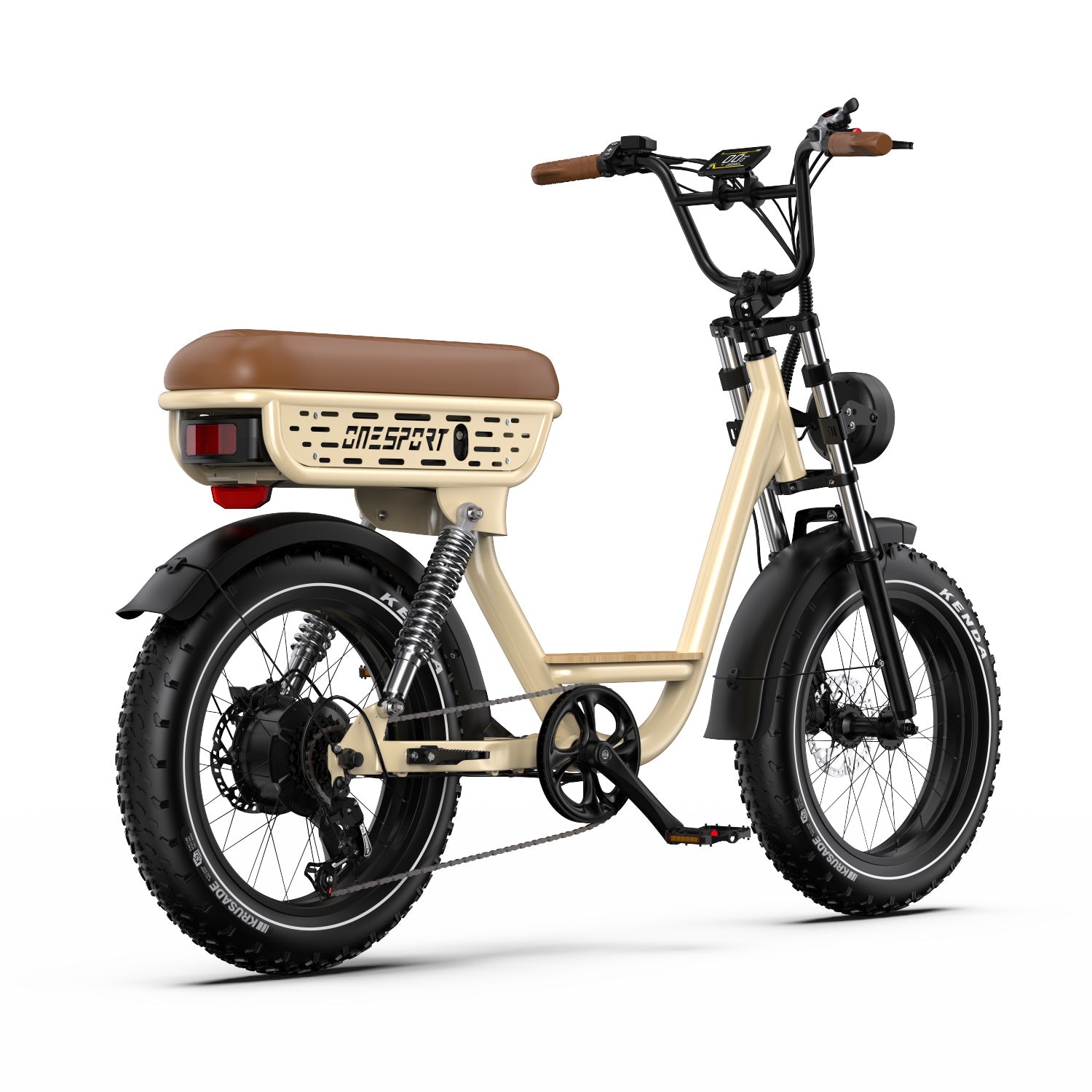

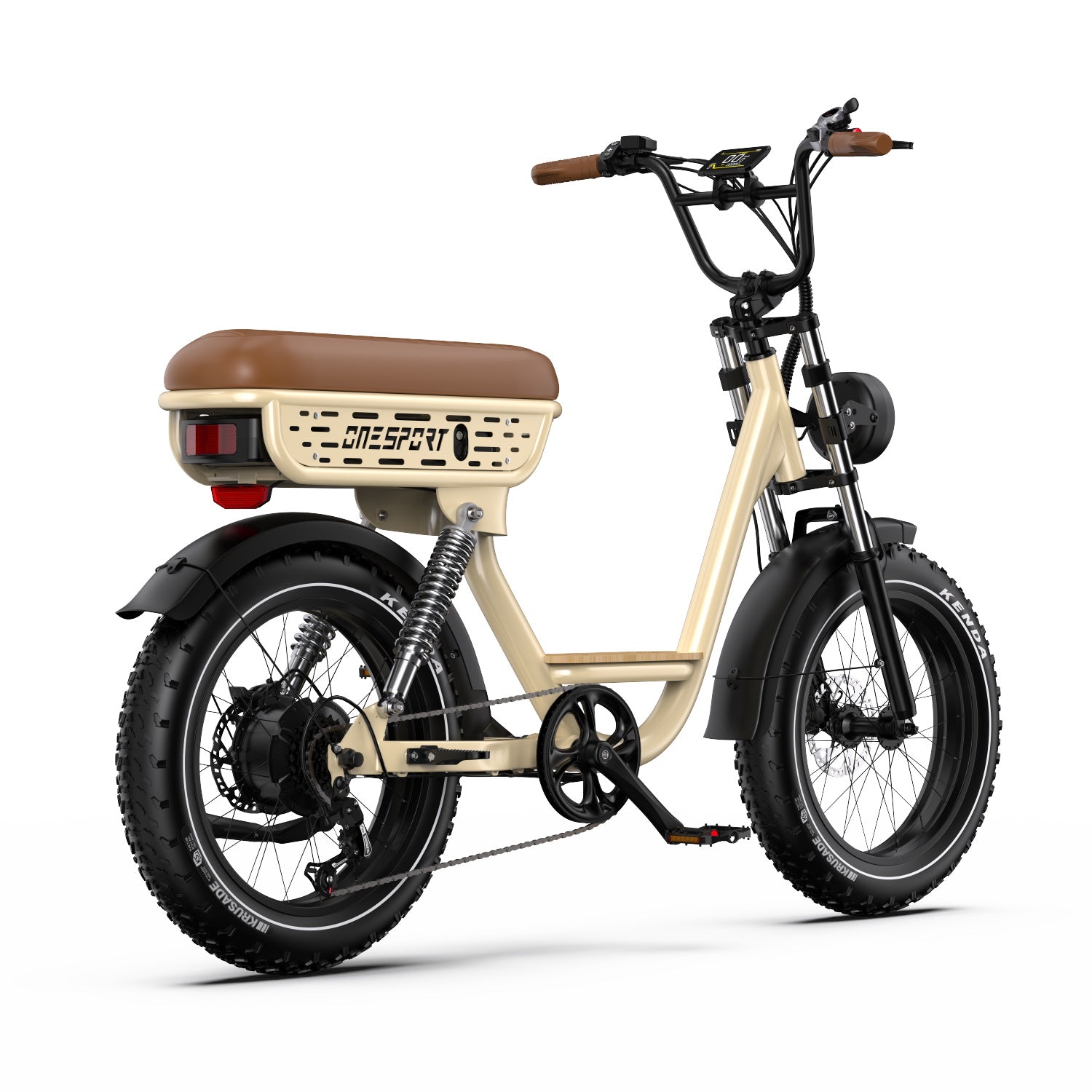

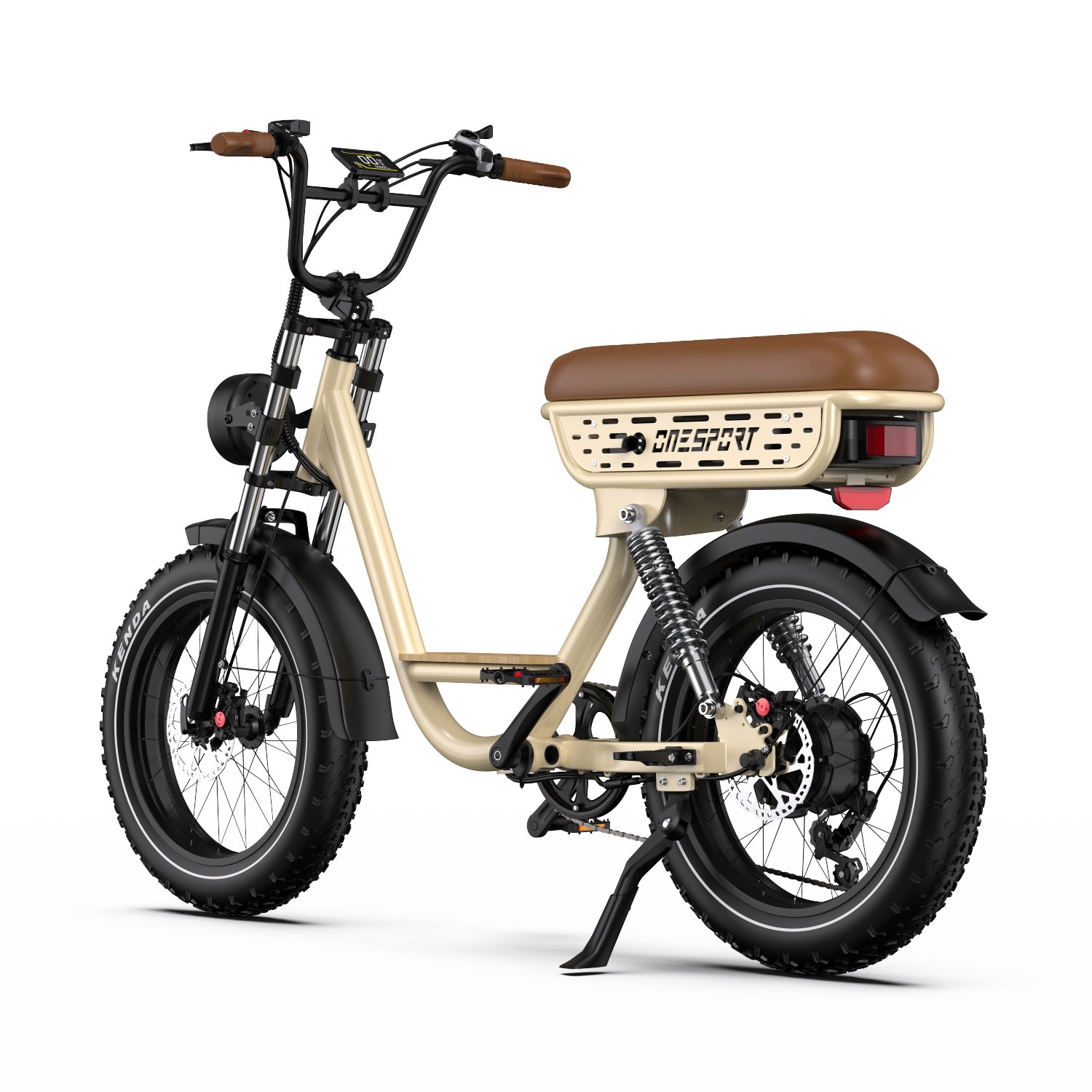

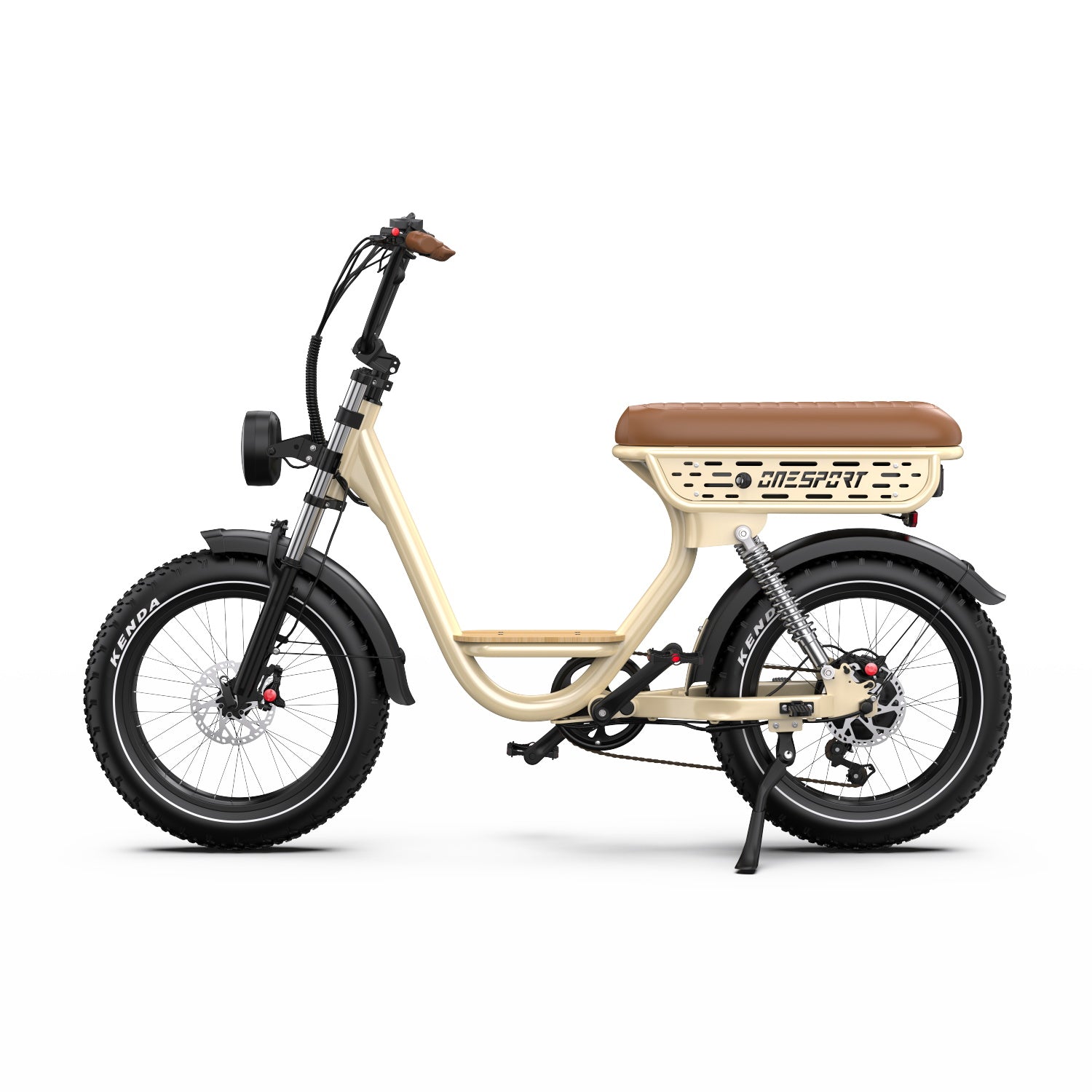

OneSport W77 Fat Tire E-Bike
48 V 18 Ah Battery | 250 W Rear Hub Motor (500 W Peak) | 65 Nm Torque | Full Suspension | Hydraulic Disc Brakes
Built for both city streets and off-road adventure, the OneSport W77 delivers power, control, and comfort in one bold design. Its 20×4.0 fat tyres provide unbeatable traction, while the dual-suspension system ensures a smooth ride wherever you go.
All-Terrain Performance: The 250 W motor (500 W peak) and 65 Nm torque give you confident acceleration on inclines and gravel paths.

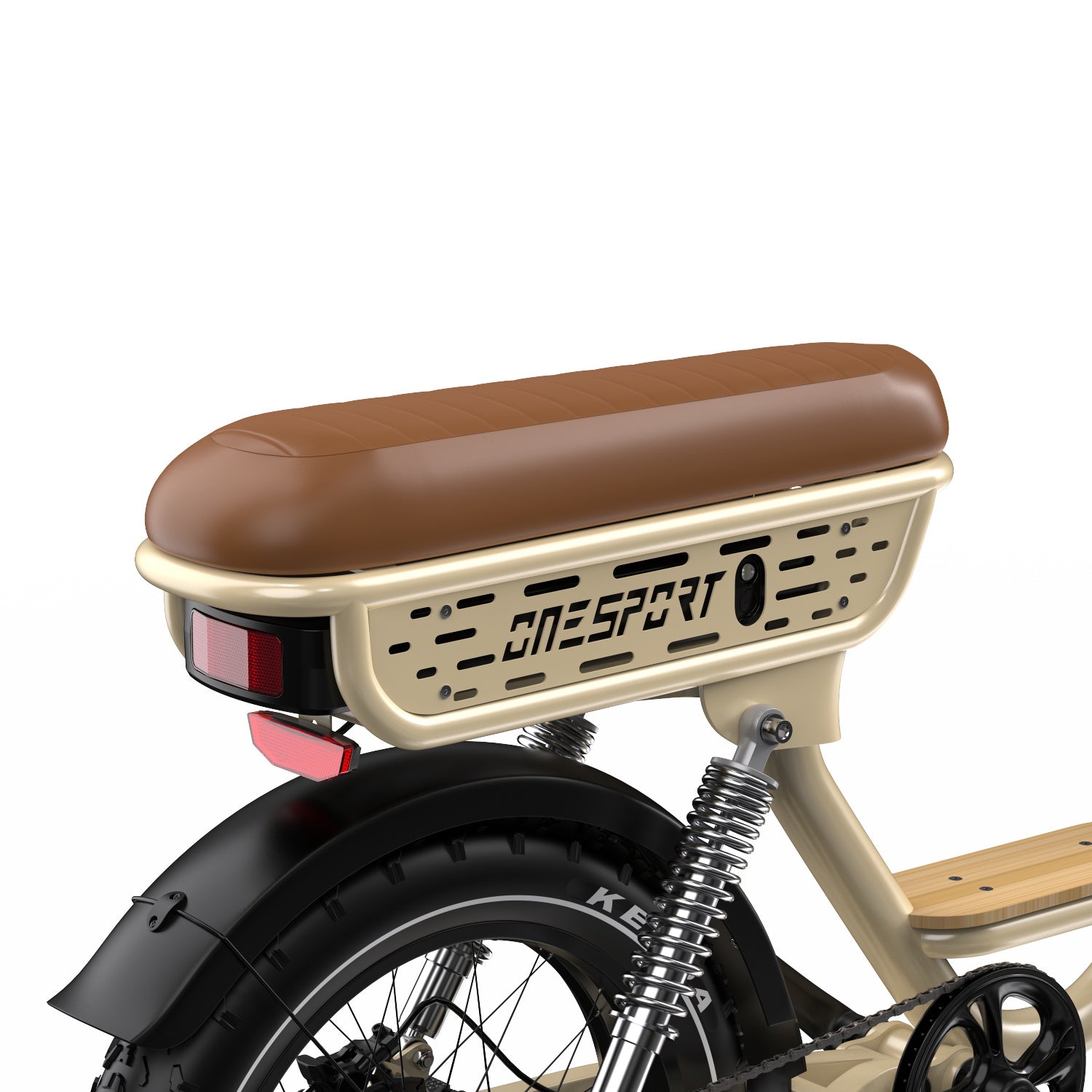

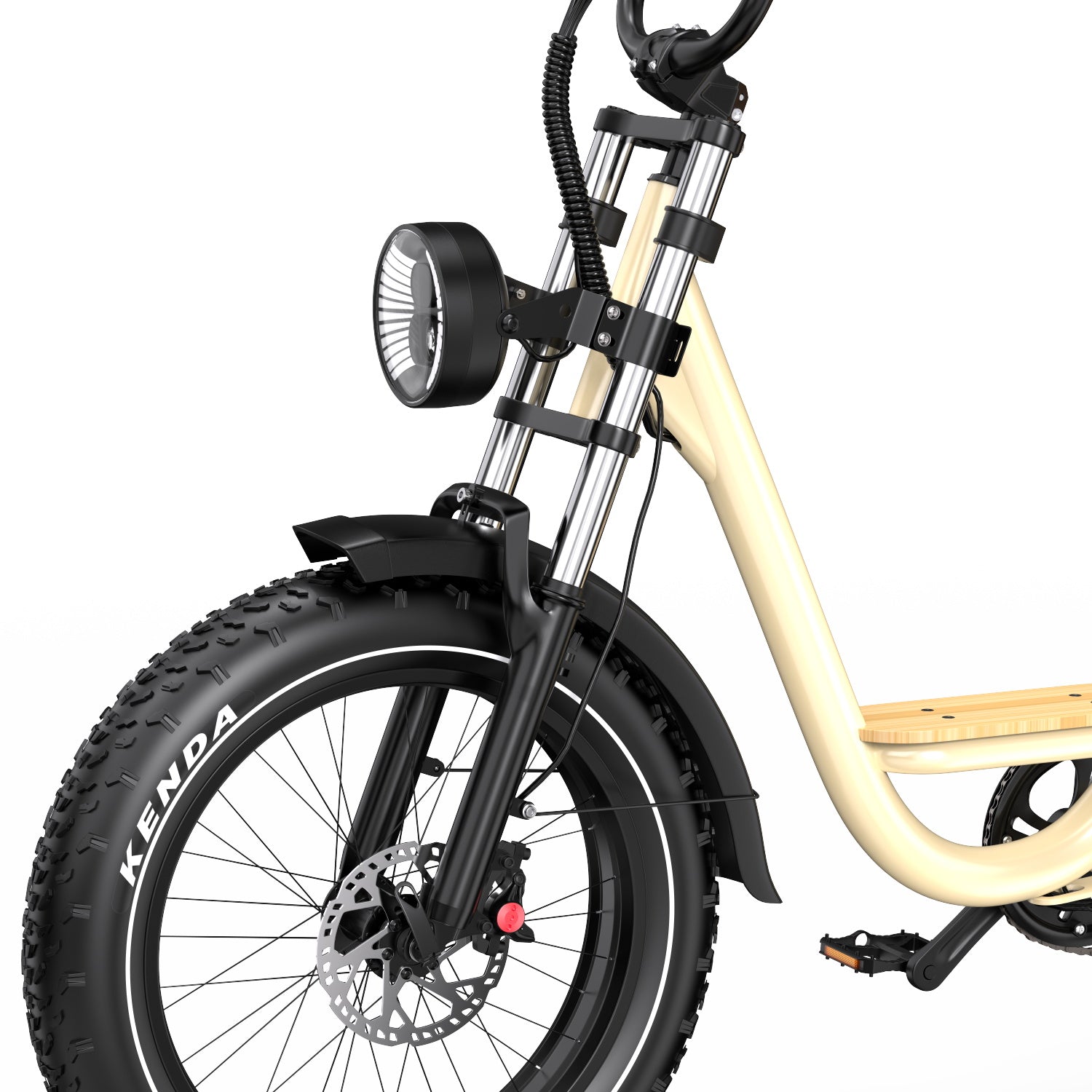

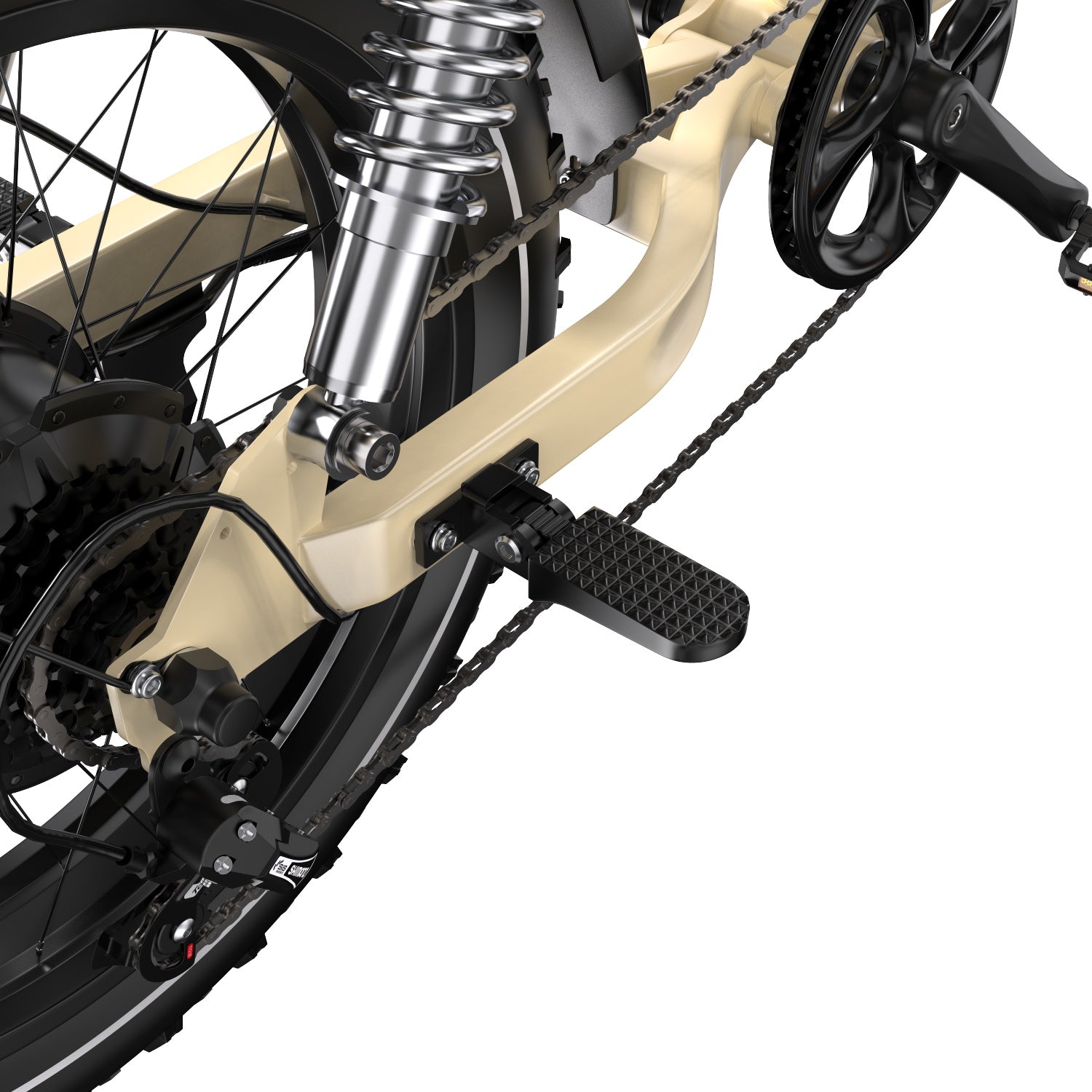

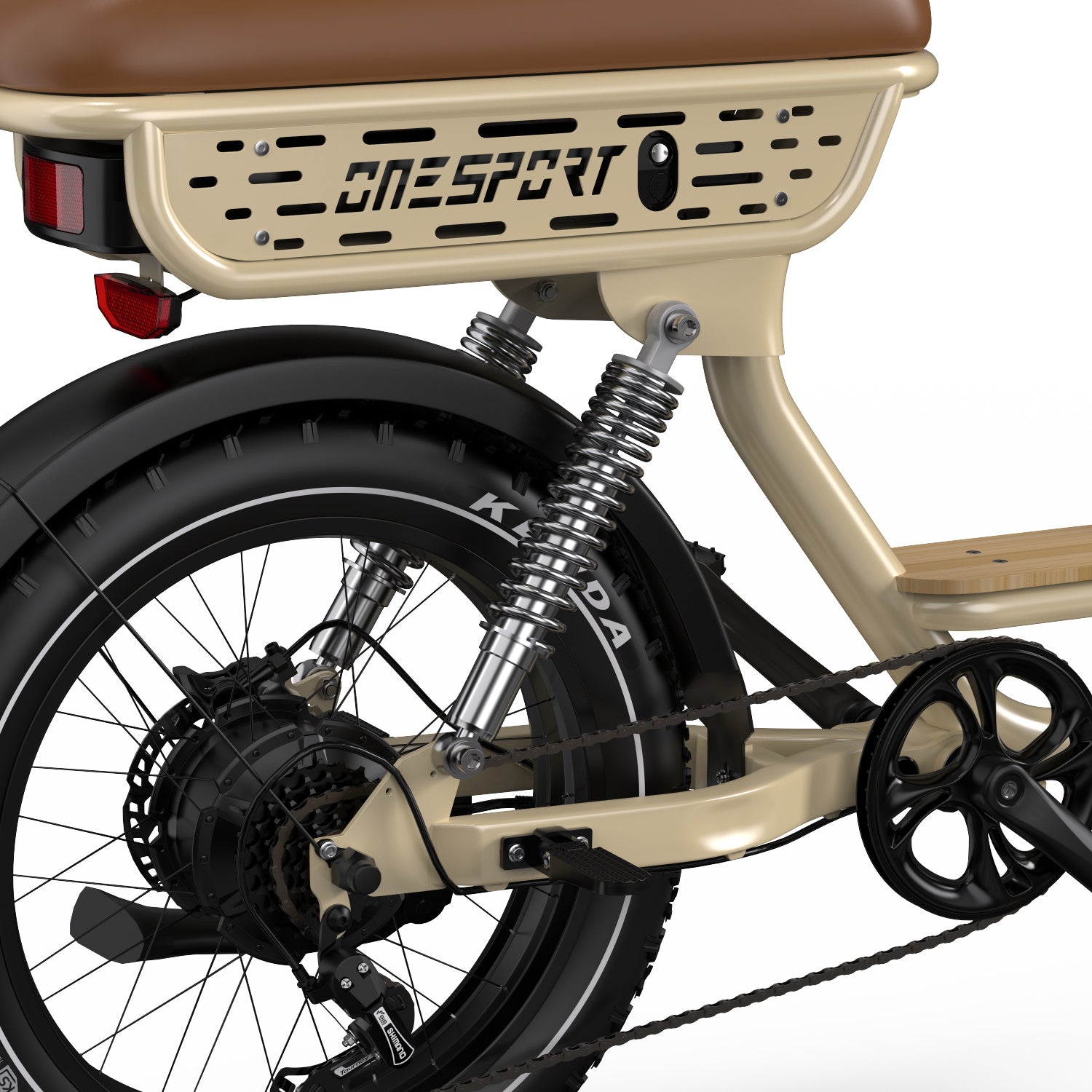

Comfort First: The full-suspension frame with coil spring shock and double-crown front fork absorbs bumps and vibrations for all-day riding comfort.

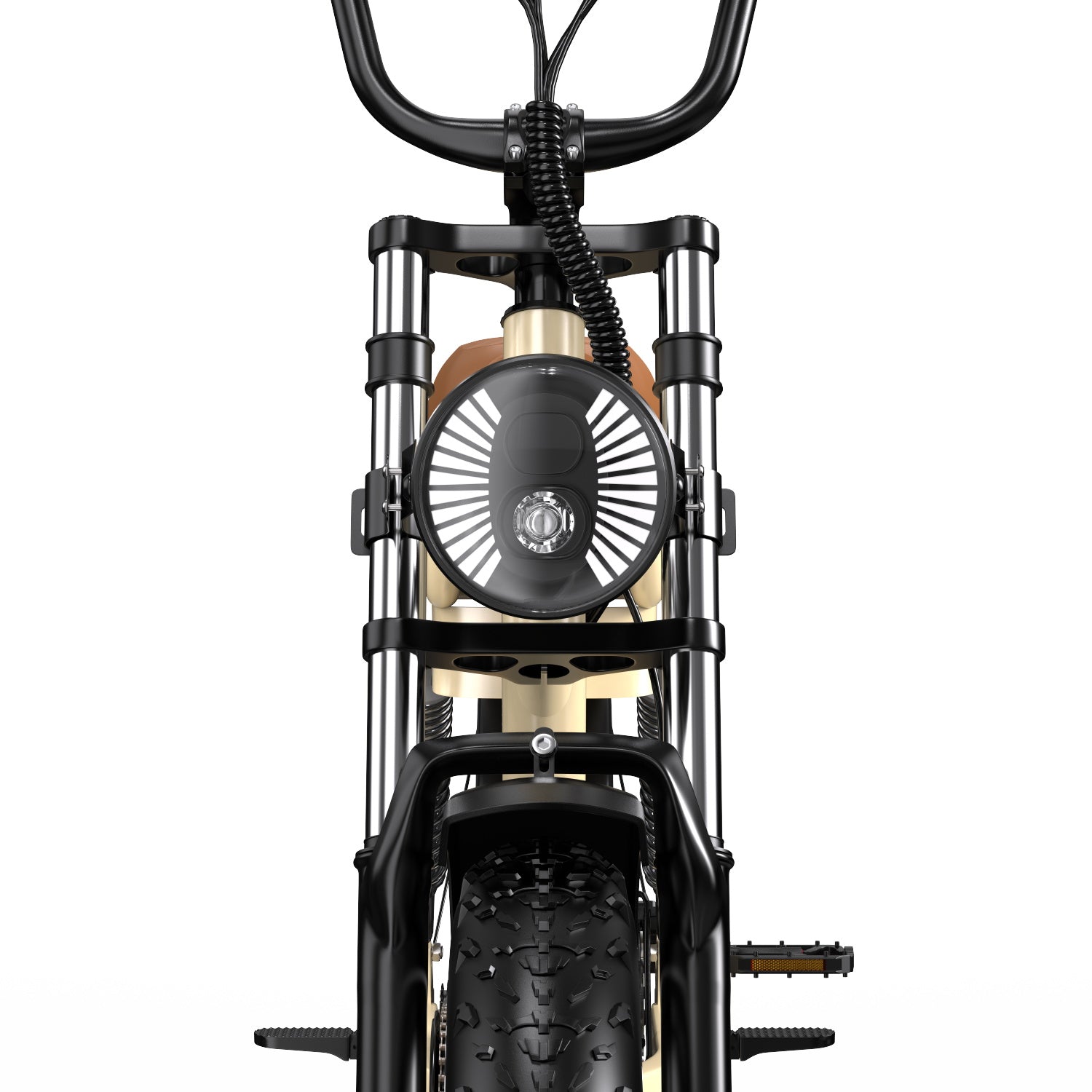

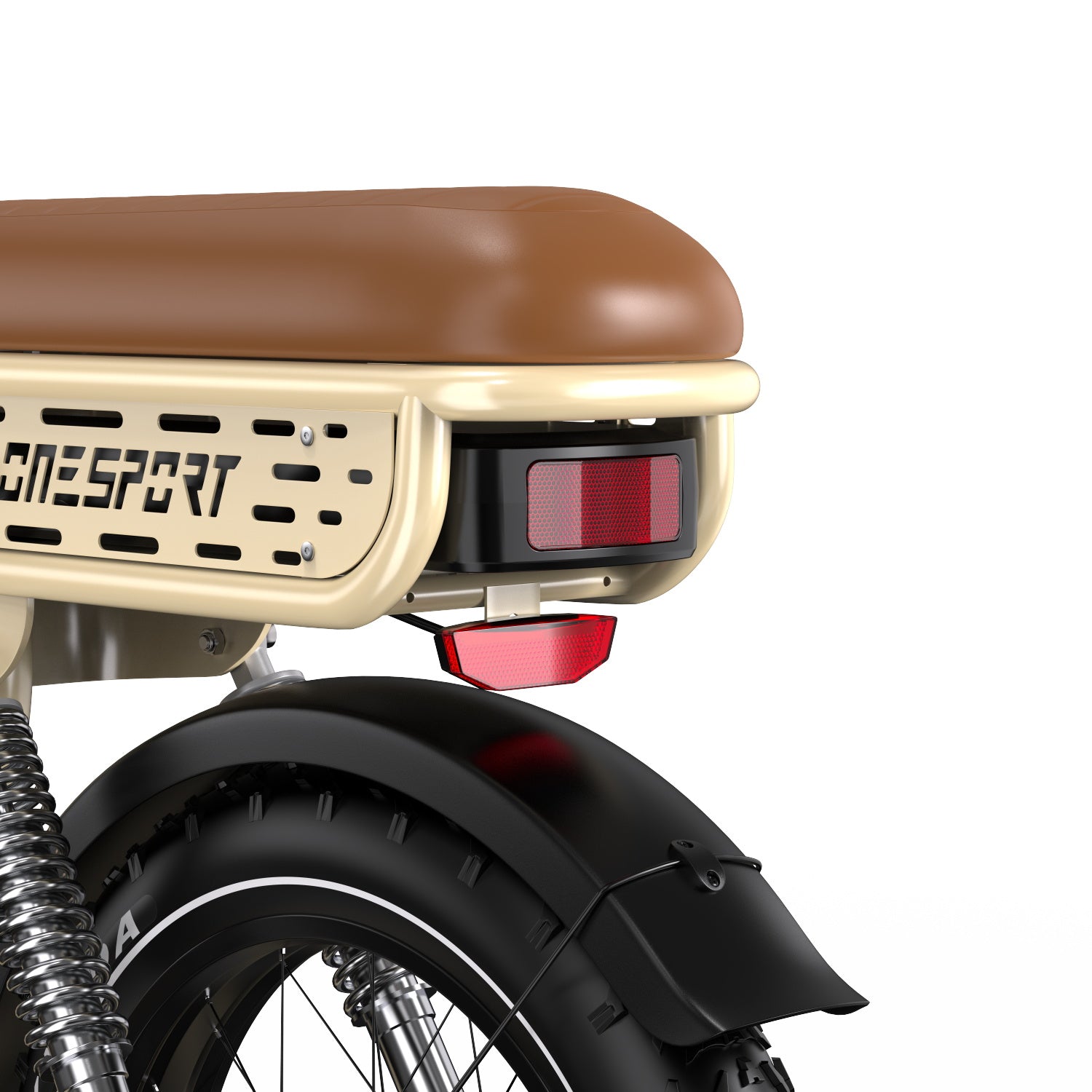

Smart & Safe: Hydraulic disc brakes, bright K-Mark front and rear lights, and IPX4 water-resistance make it perfect for all-weather commuting.
Power, control, and confidence — ride the W77 and redefine your adventure.

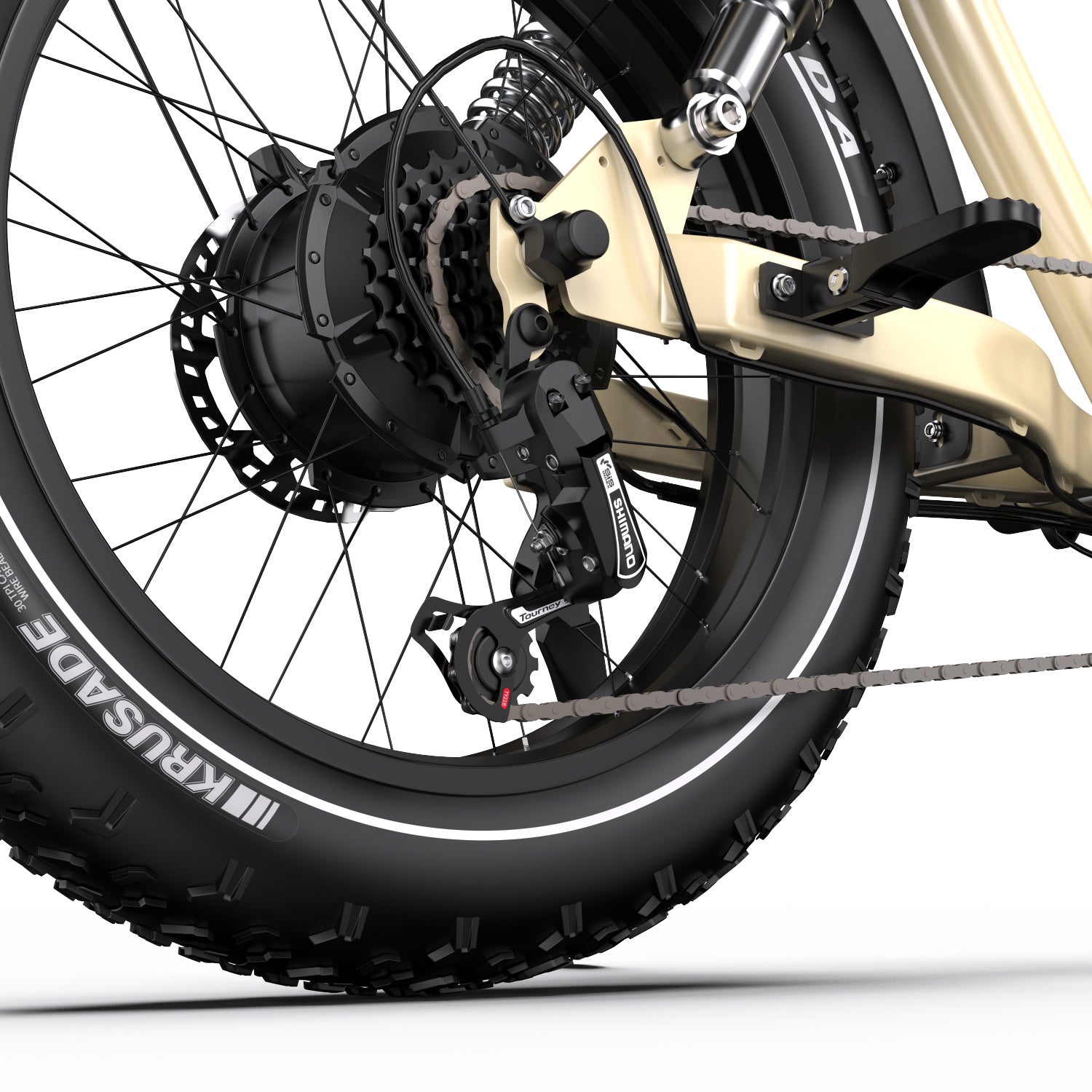

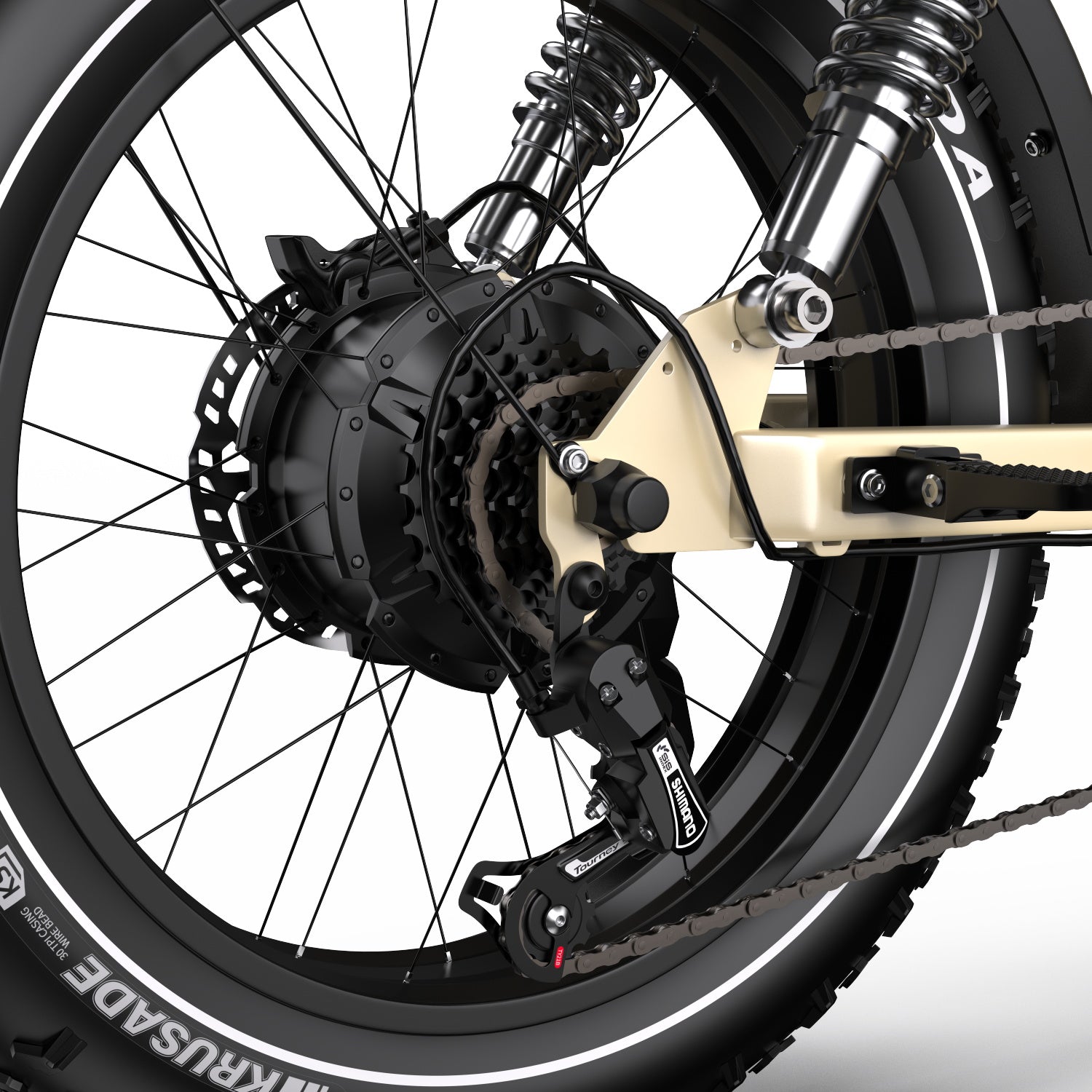

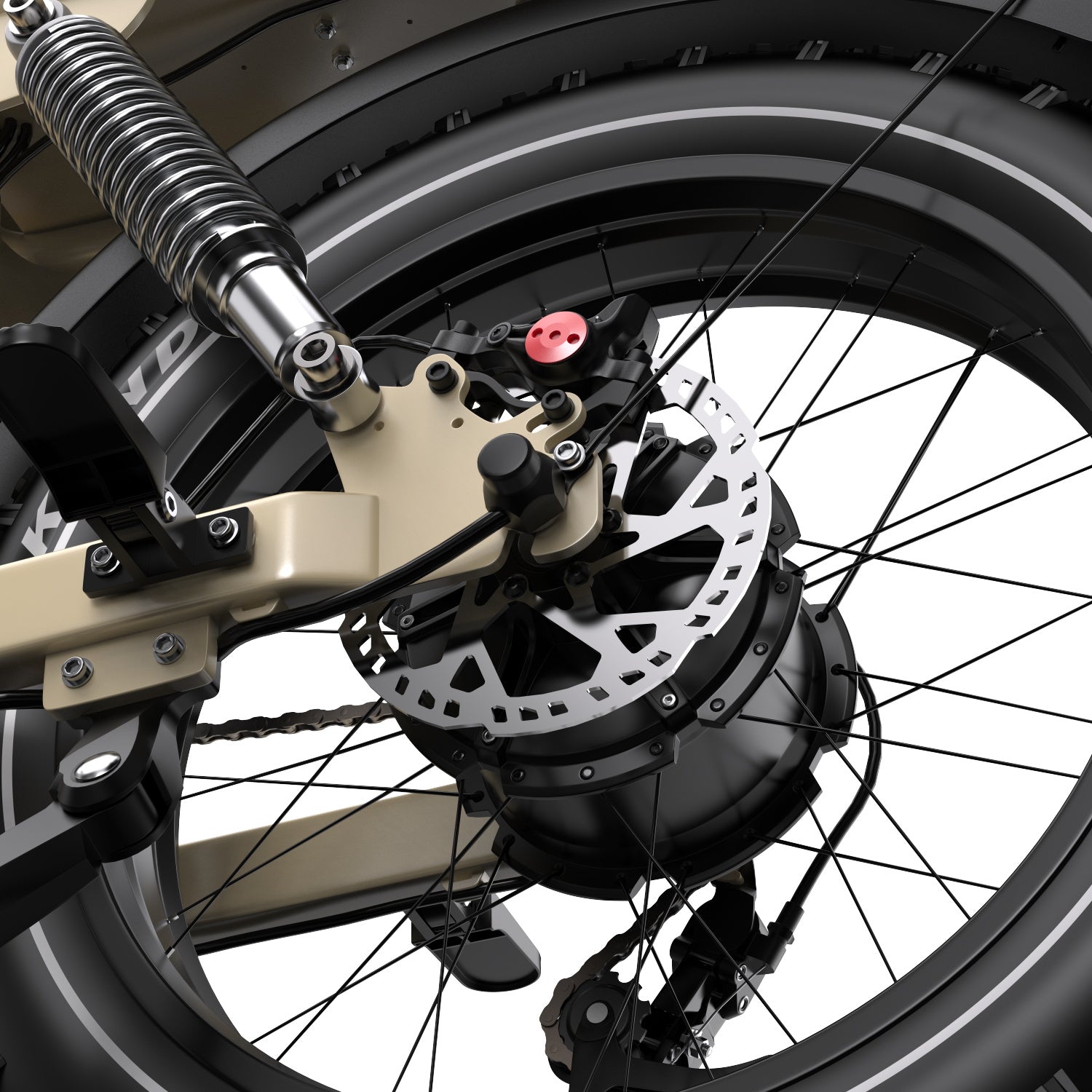

| Motor | Rear Hub 48 V 250 W (500 W Peak) |
| Battery | 48 V 18 Ah Lithium-ion |
| Torque | 65 Nm |
| Range | 80 – 90 KM (Pedal Assist Mode) |
| Top Speed | 25 KM/H (EU Compliant Limit) |
| Frame | High-Tensile Steel Full Suspension Frame |
| Tyres | 20 × 4.0 Kenda Fat Tyres |
| Brakes | Zoom Hydraulic Disc 180 mm |

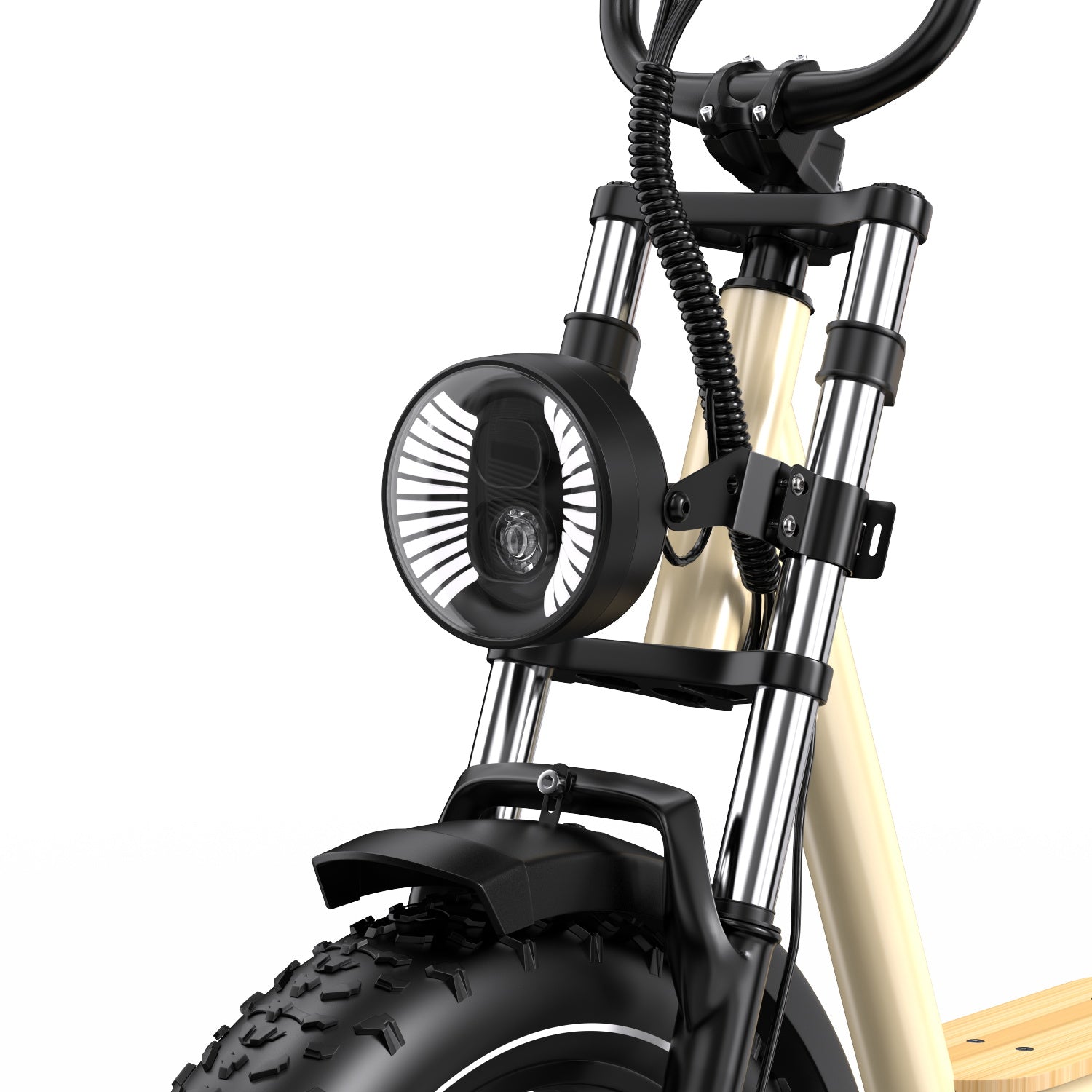

| Suspension | Front Double-Crown Fork + Rear Coil Shock |
| Display | 3.5″ LCD Screen |
| Assist Levels | 3 Modes (PAS 1-3) |
| Charging Time | 8 – 10 Hours |
| Load Capacity | 90 KG |
| Weight | 43.18 KG |
| Rider Height Range | 160 – 200 CM |
Key Features & Rider Fit

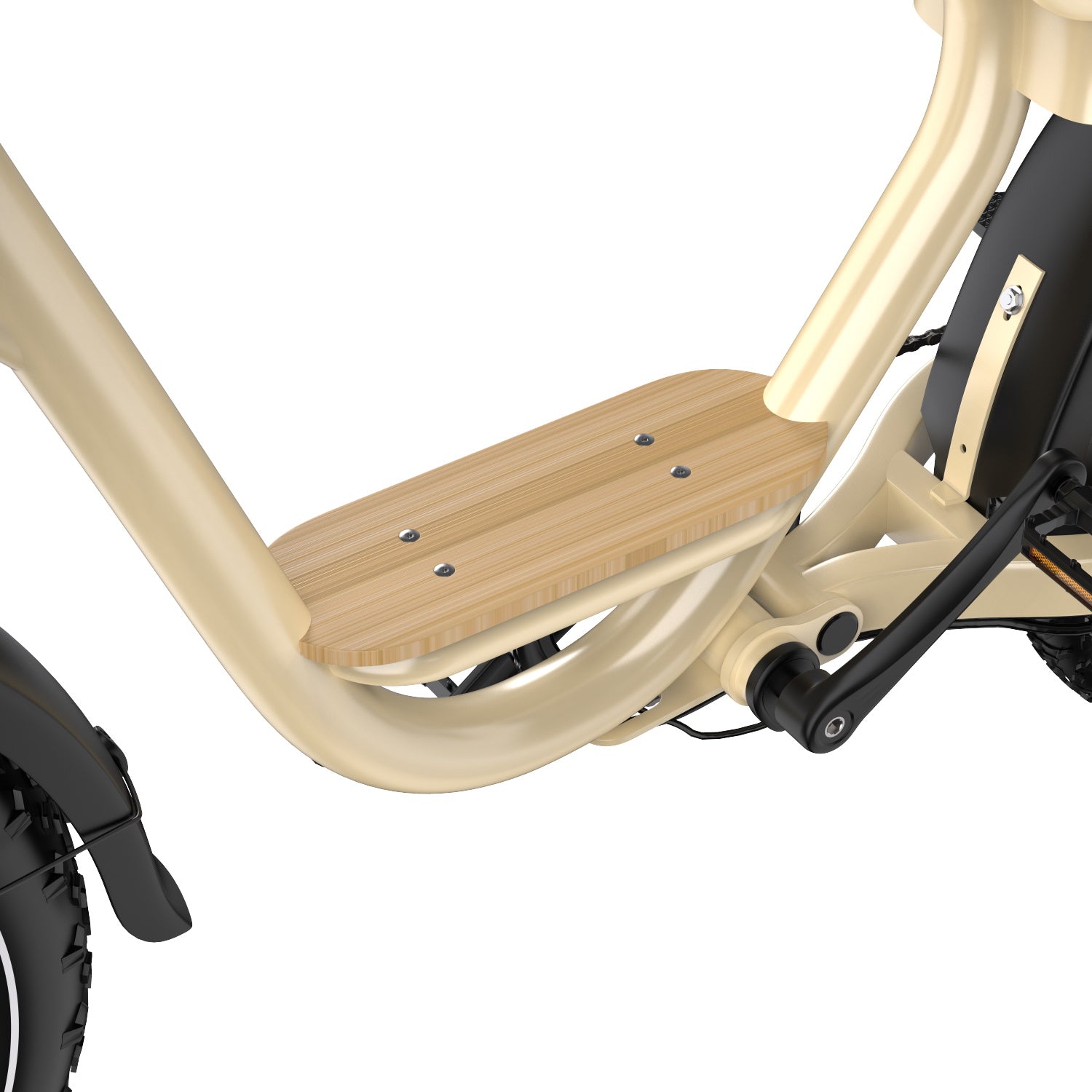

Low-Step Frame: Easy to mount and dismount for any rider.
Full Suspension: Front and rear shock absorption for extra comfort.

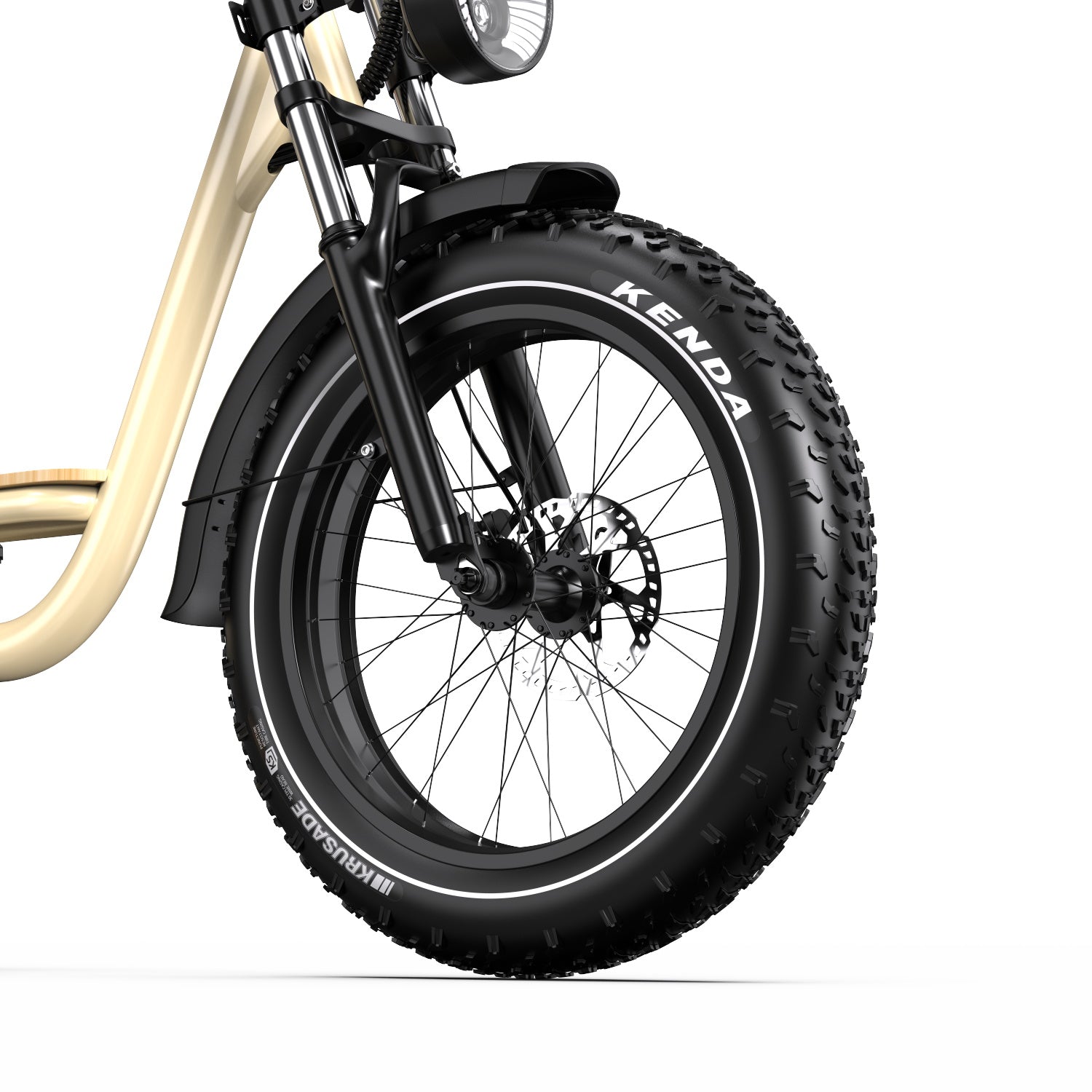

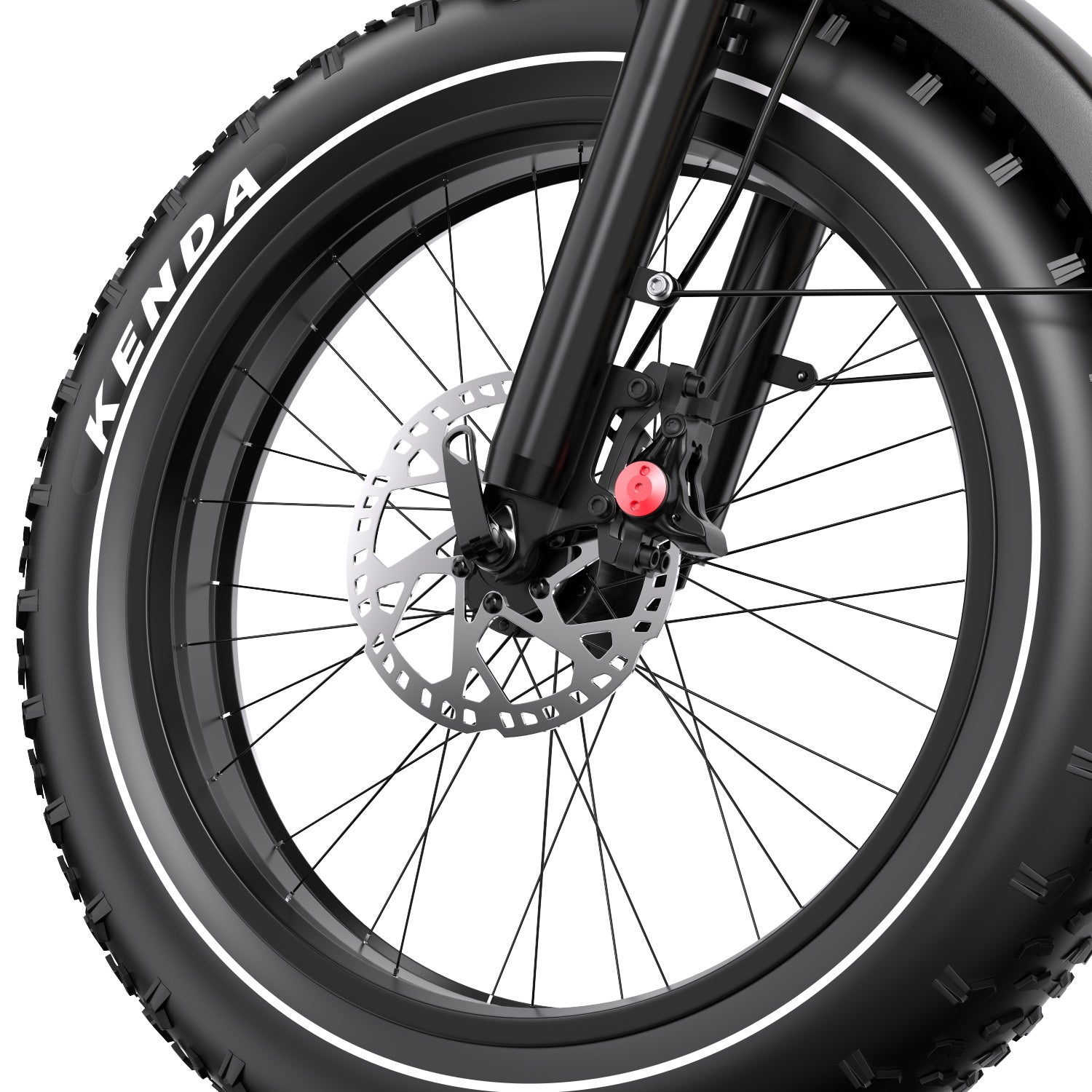

Fat Tyres: 20×4.0 Kenda tyres offer stability and superior traction on all surfaces.
Hydraulic Disc Brakes: Reliable stopping power in wet and dry conditions.

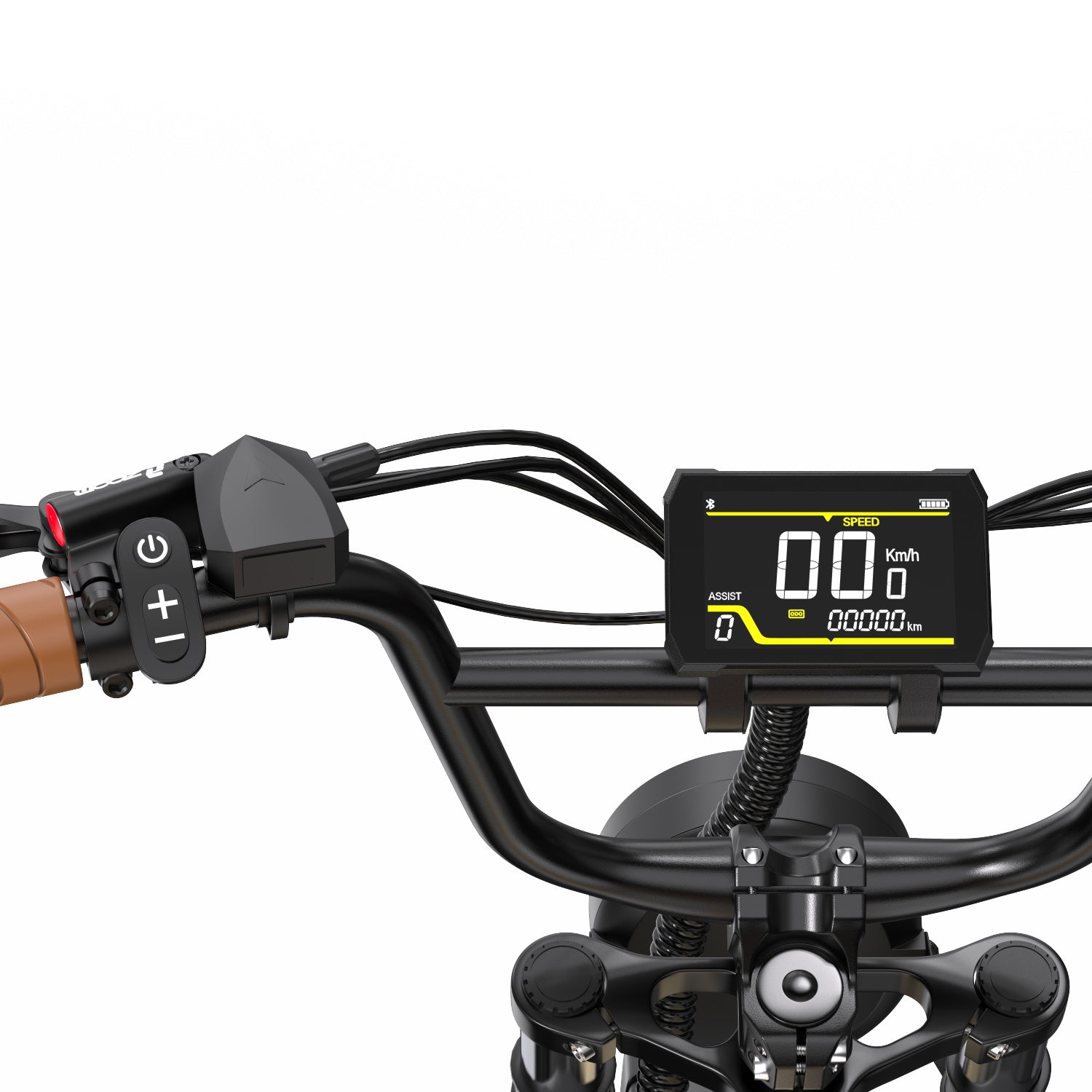

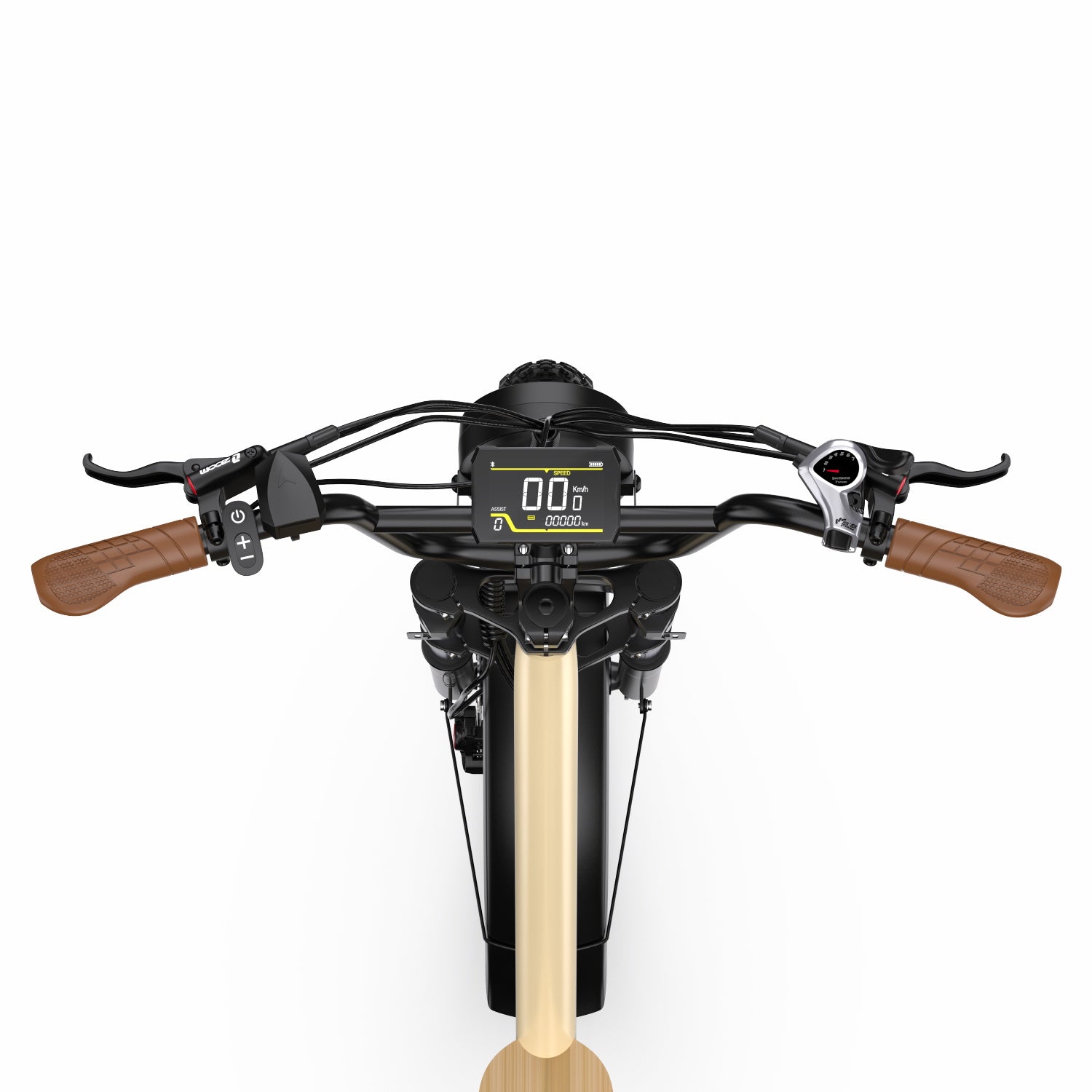

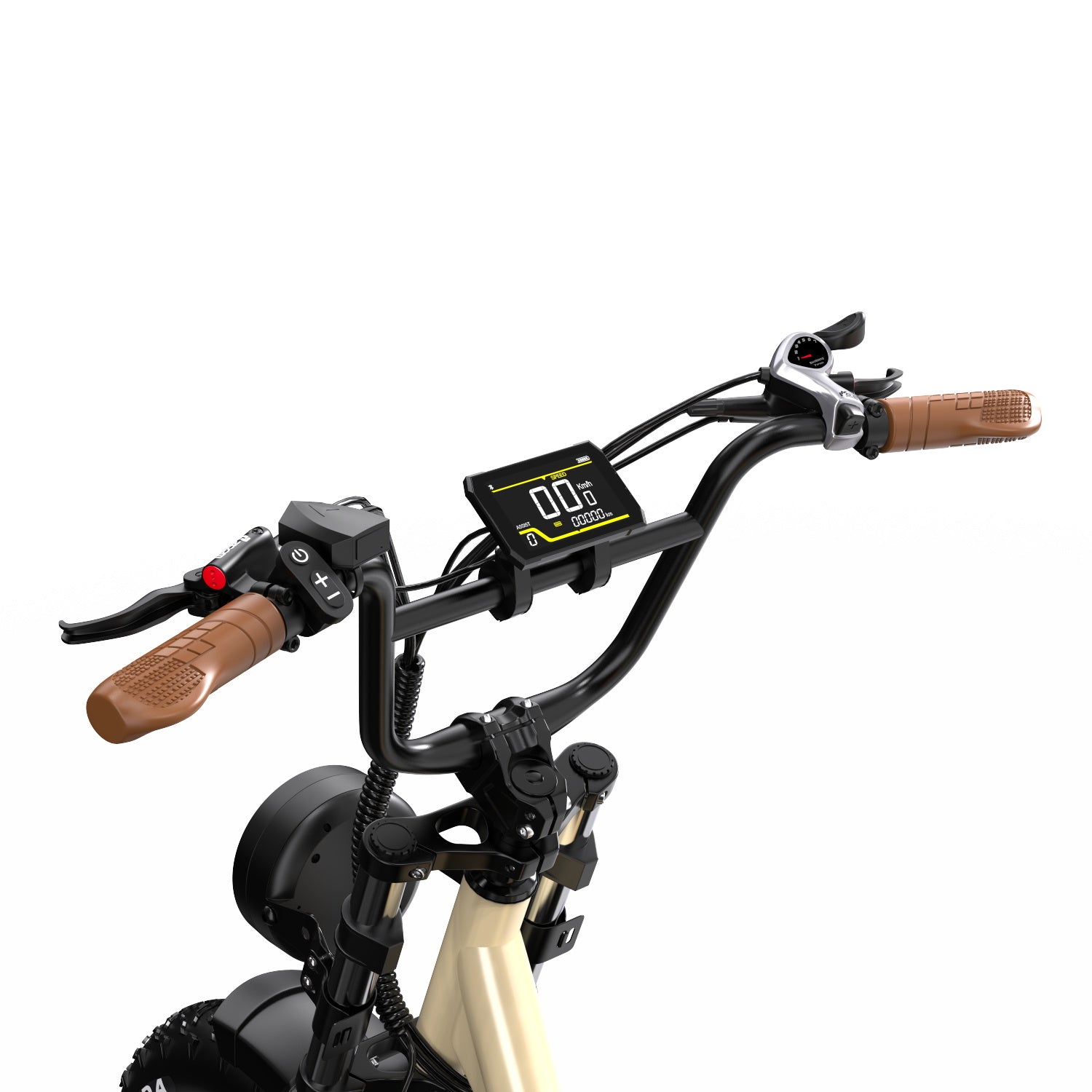

Smart Display: 3.5″ LCD shows speed, battery, and assist level clearly.
Fit Range: Ideal for riders 160 – 200 CM | Max Load 90 KG.
| Model | W77 | OT16-2 | OT07 |
|---|---|---|---|
| Motor | 250 W Hub (500 W Peak) | 250 W Hub | 250 W Mid-Drive |
| Battery | 48 V 18 Ah | 48 V 17 Ah | 36 V 14 Ah |
| Range | 90 KM | 120 KM | 90 KM |
Is the OneSport W77 Fat Tire E-Bike legal in Europe and the UK?
Fully compliant with EU/UK EAPC (assisted bicycle) regulations:
1) Maximum Speed: 25 KM/H (default limit).
2) Motor Output: 250 W continuous rated power.
3) Ingress Protection: IPX4 Water-Resistant for all-weather use.
4) Certification: CE Certified.
Warranty: Frame 2 Years | Parts 1 Year | Battery 1 Year.
✅ Approved for public roads and cycle lanes under EAPC standards.
