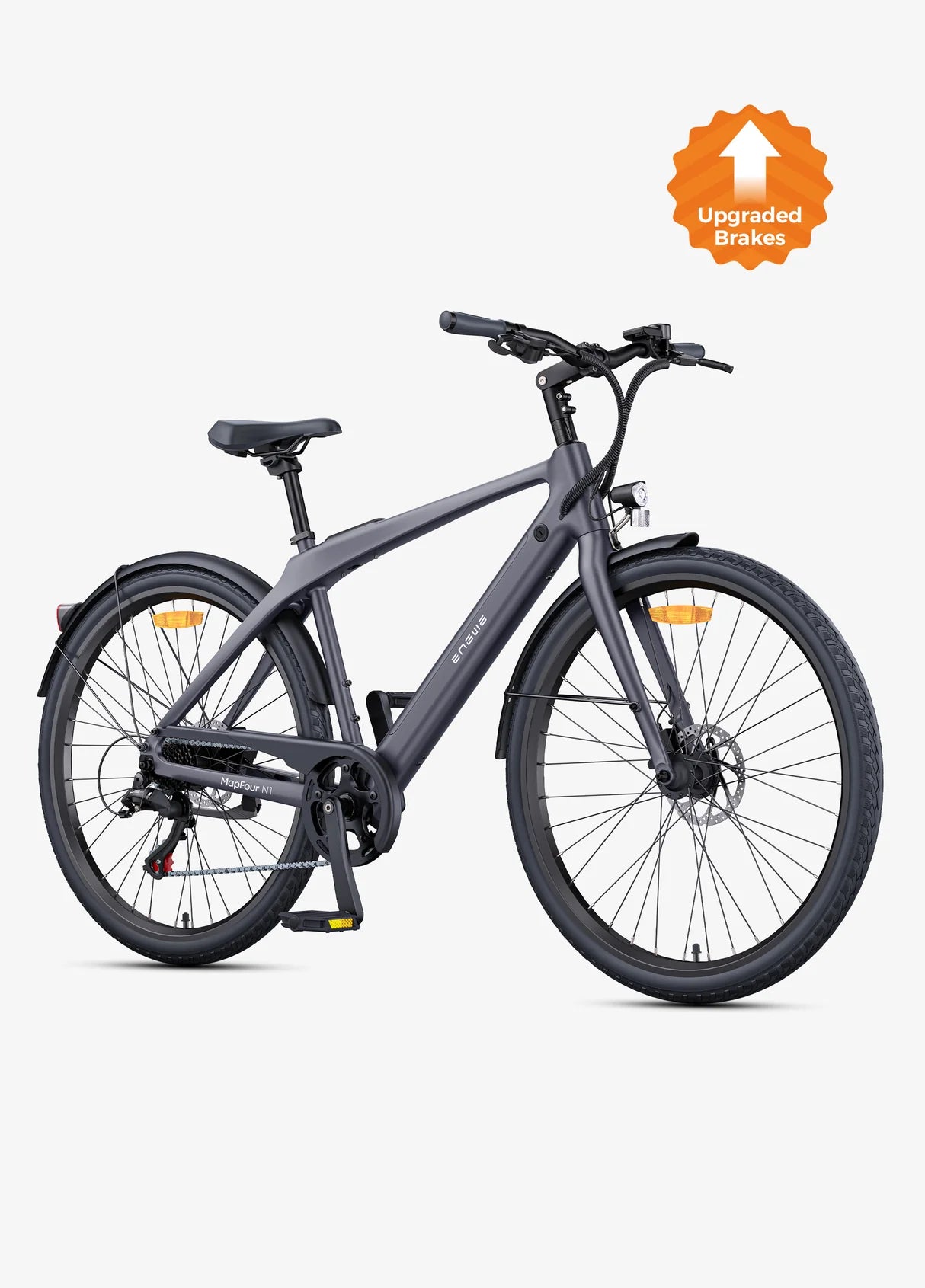

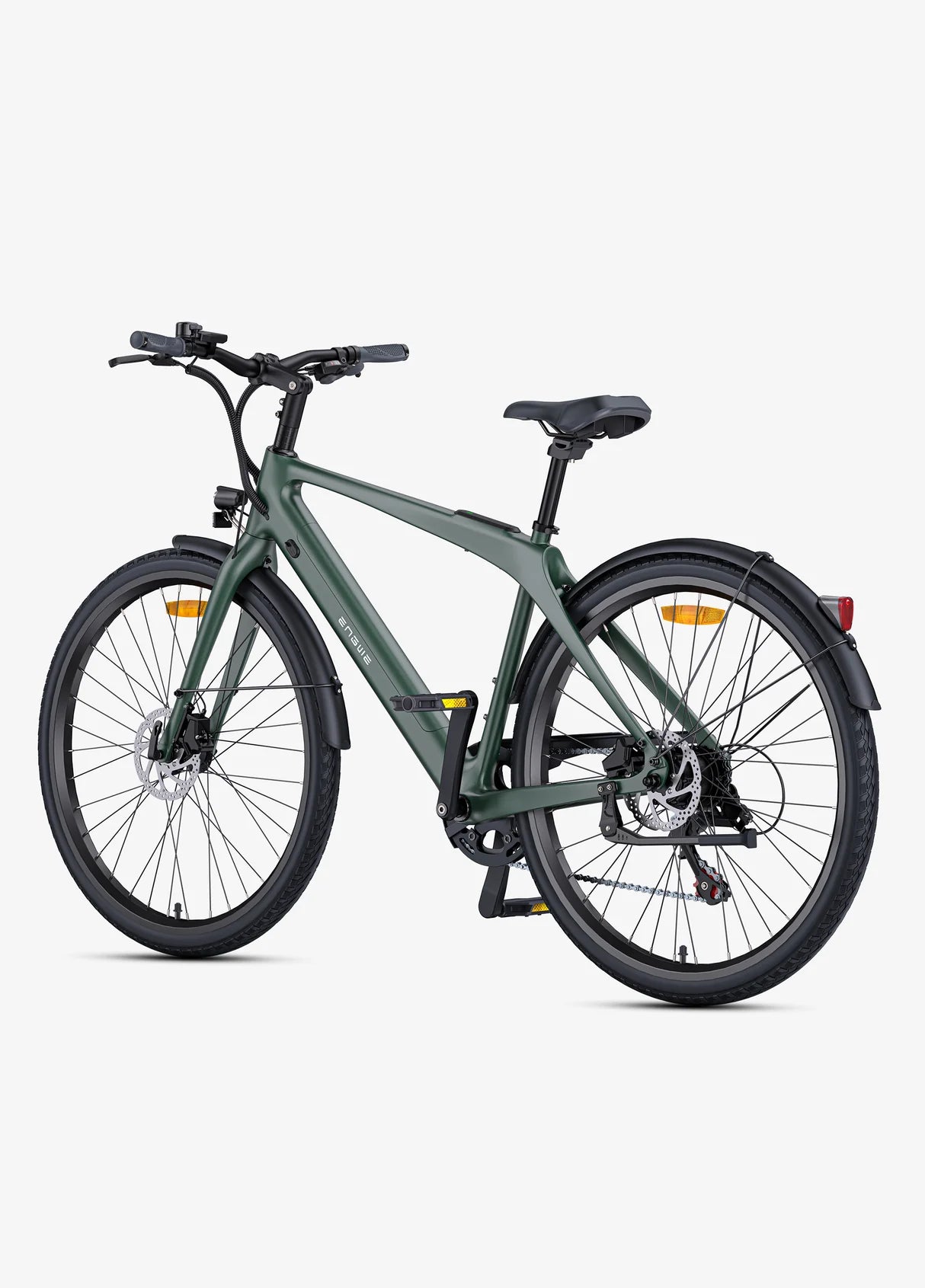

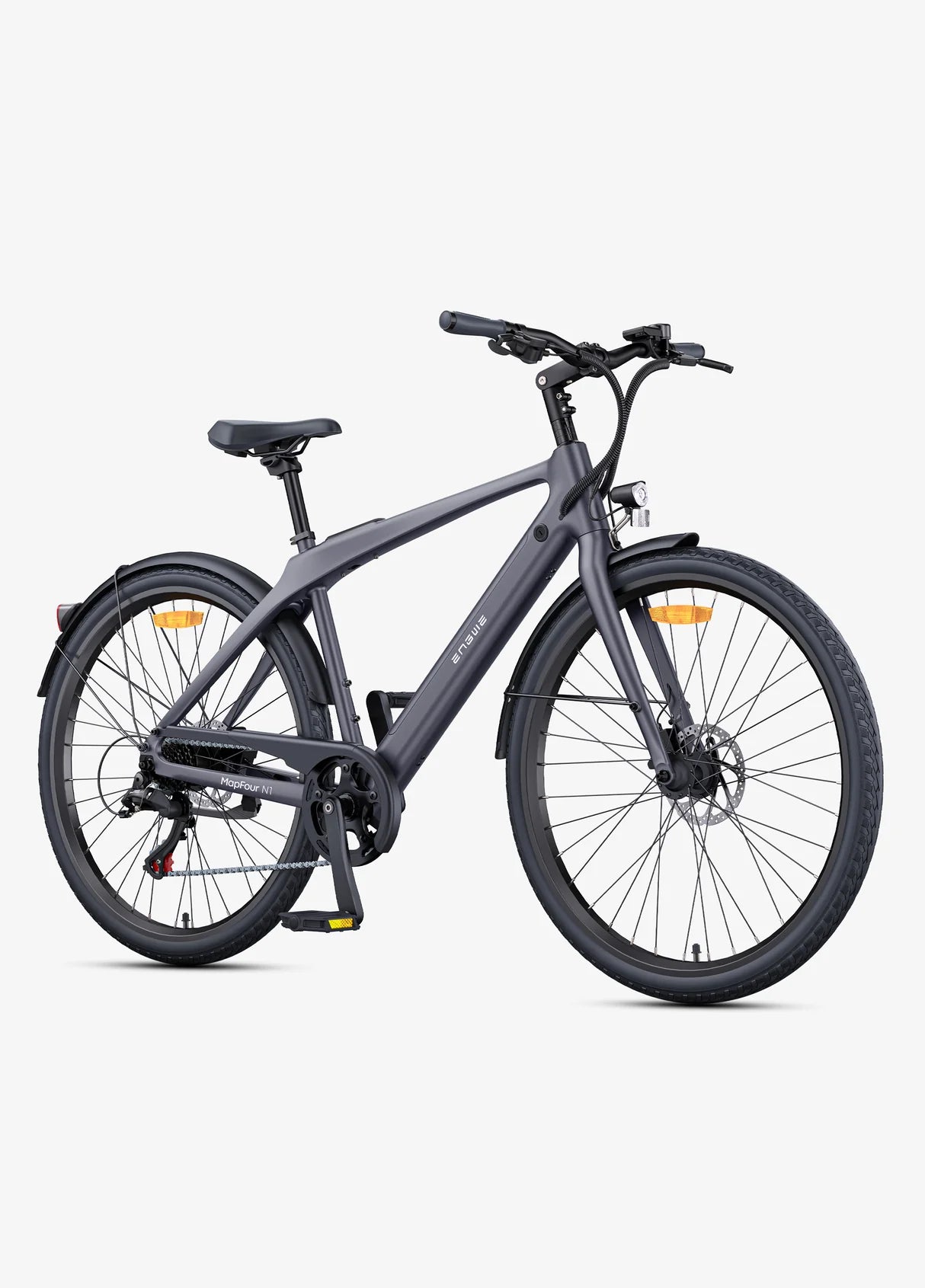

ENGWE N1 Air - Ultra-Lightweight 100KM Long Range Carbon Fiber City E-bike
250W MIVICE M070 Rear Hub Motor | 36V 10Ah SAMSUNG Battery | 100 KM Range | 15.6kg Carbon Fiber Frame | Torque Sensor | Step-Over Design
The ENGWE N1 Air is your perfect first carbon e-bike, combining ultra-lightweight construction with exceptional range and performance. Crafted with premium Toray carbon fiber using exclusive monocoque molding, the N1 Air delivers superior strength and shock absorption for a smoother, more comfortable ride on any terrain.

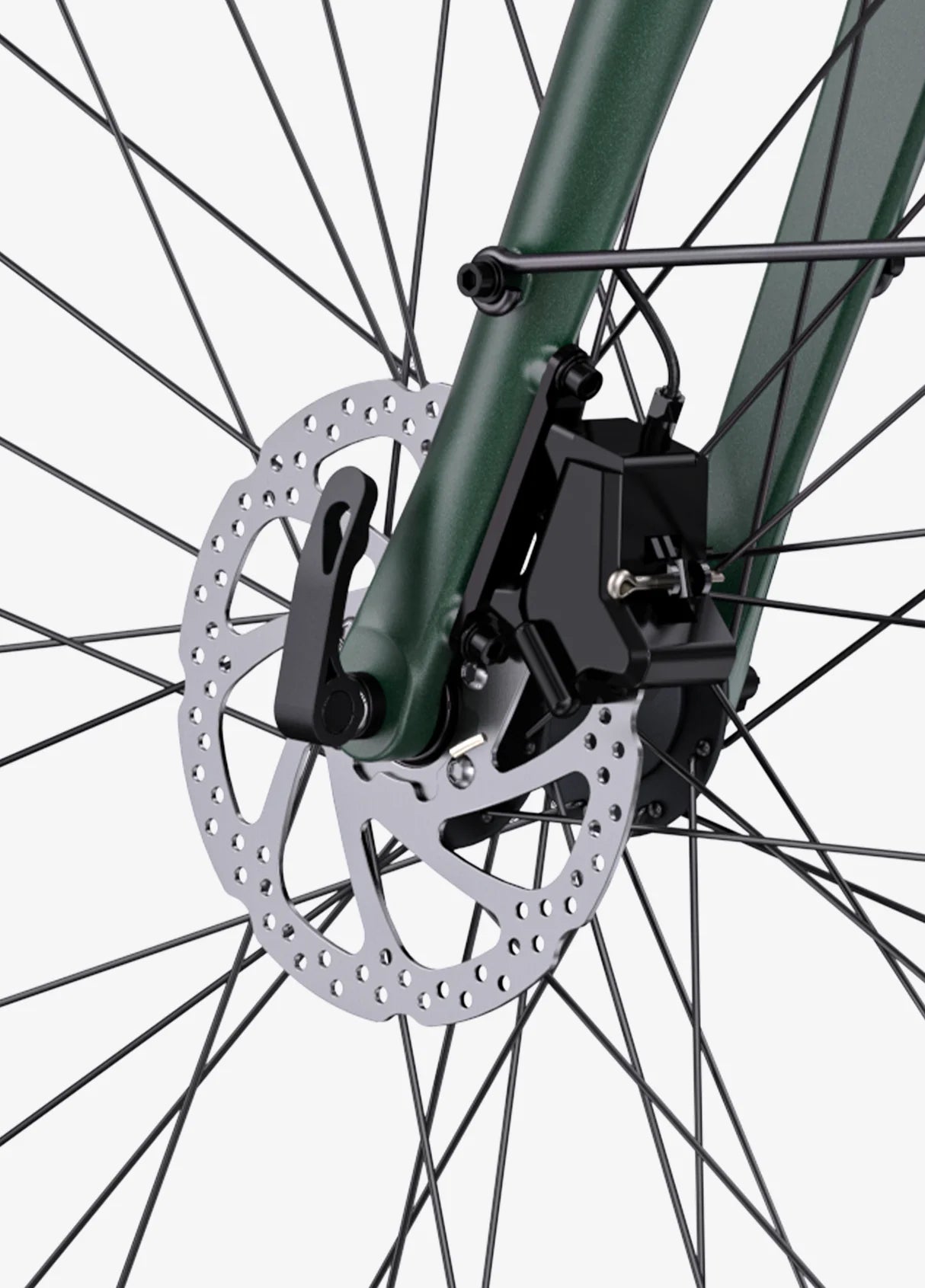

With its sporty step-over frame design, the N1 Air offers enhanced performance and riding experience. Choose between Mechanical or Hydraulic versions to match your riding style and budget, both delivering exceptional performance with SHIMANO 7-speed transmission and 700×38C tires for smooth urban commuting.
Best Choice for Your First Carbon E-bike
• 15.6kg Ultra Lightweight
• 100km Long Range
• Carbon Frame with Superior Shock Absorption
• Motion Detection & GPS Tracking

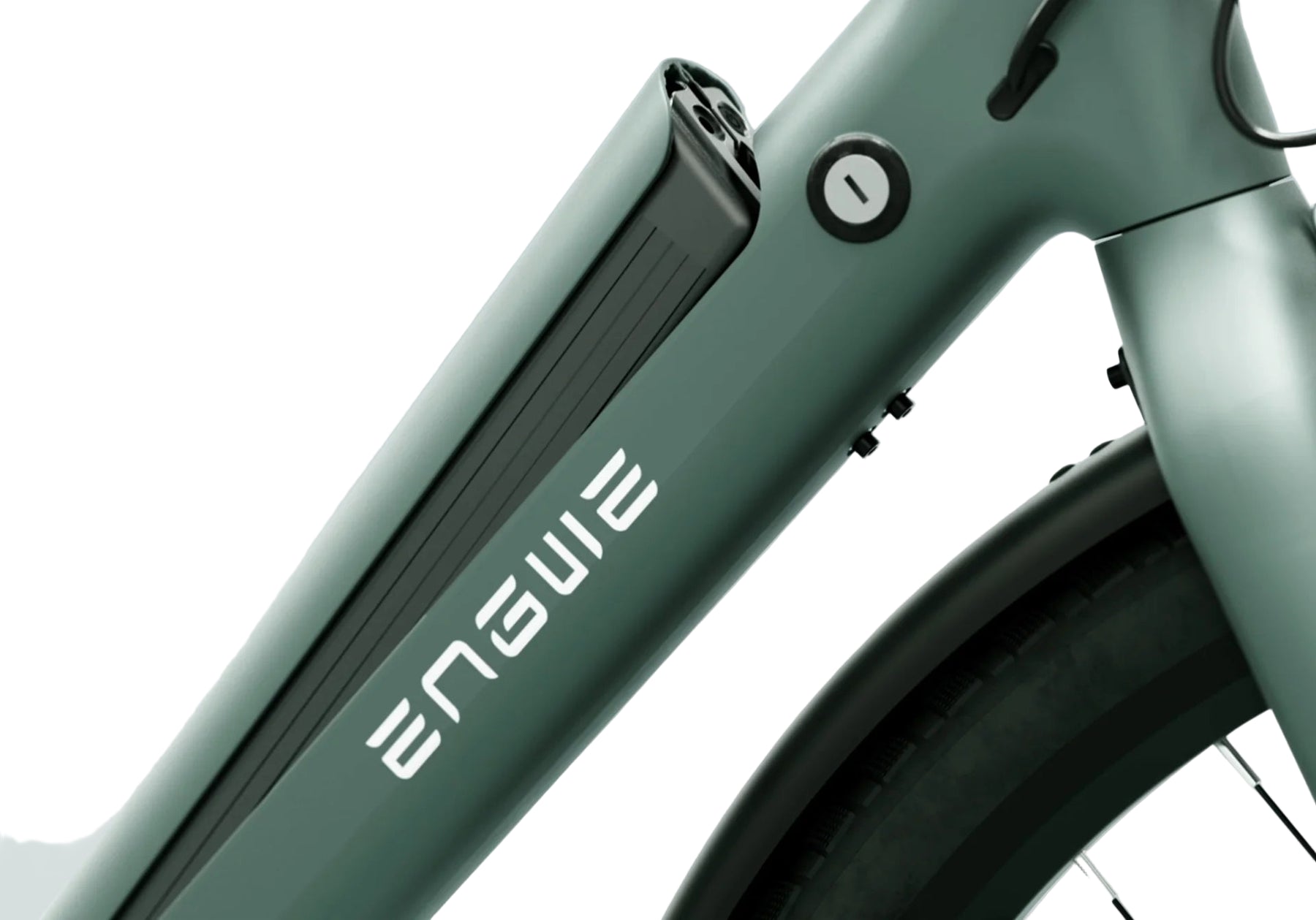

• Removable Samsung Battery
• iOT Anti-Theft Protection
Frame Style Options
| Model | Frame Design | Best For |

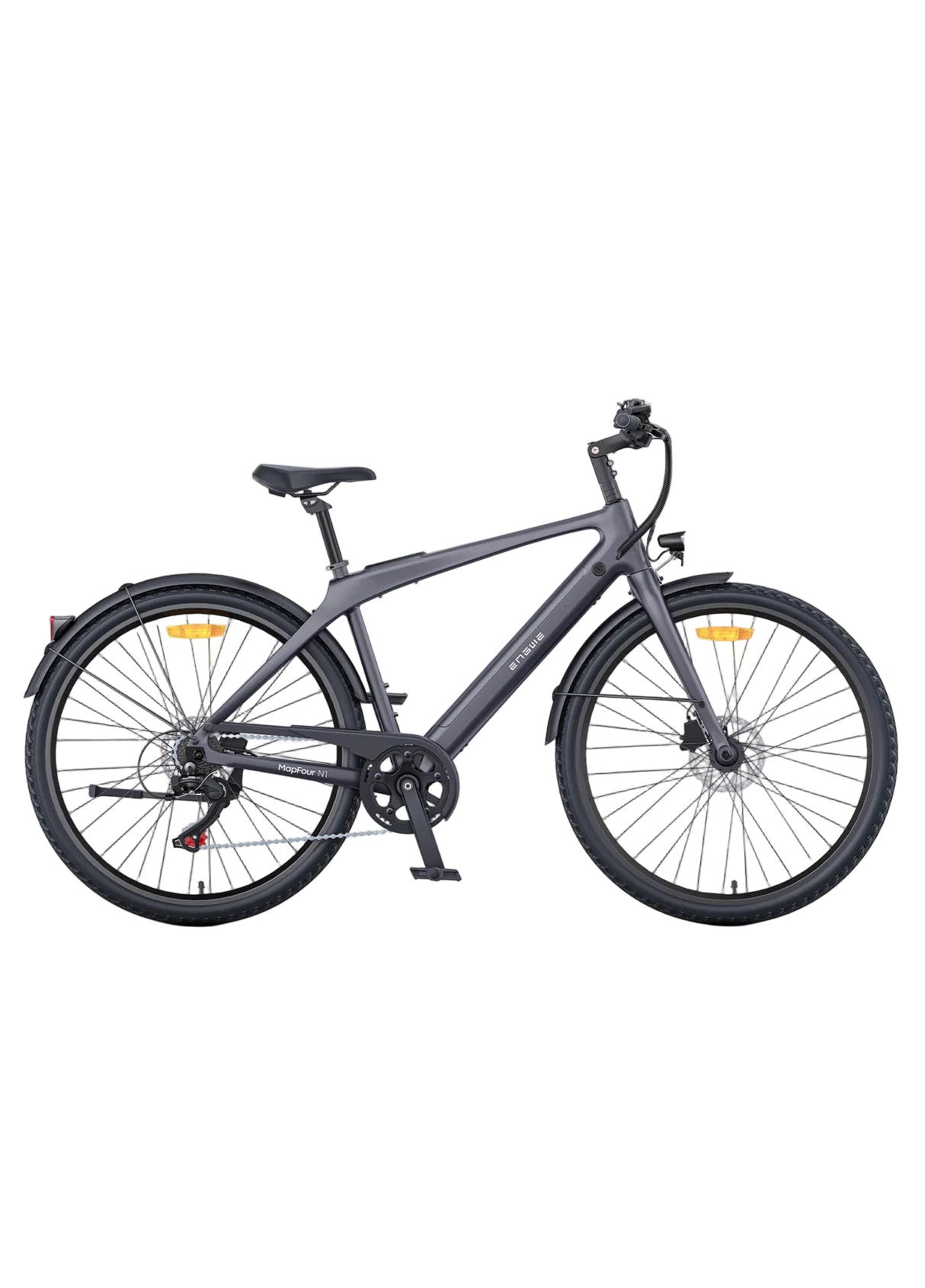

| N1 Air | Step-Over Frame | Sporty performance and riding experience |

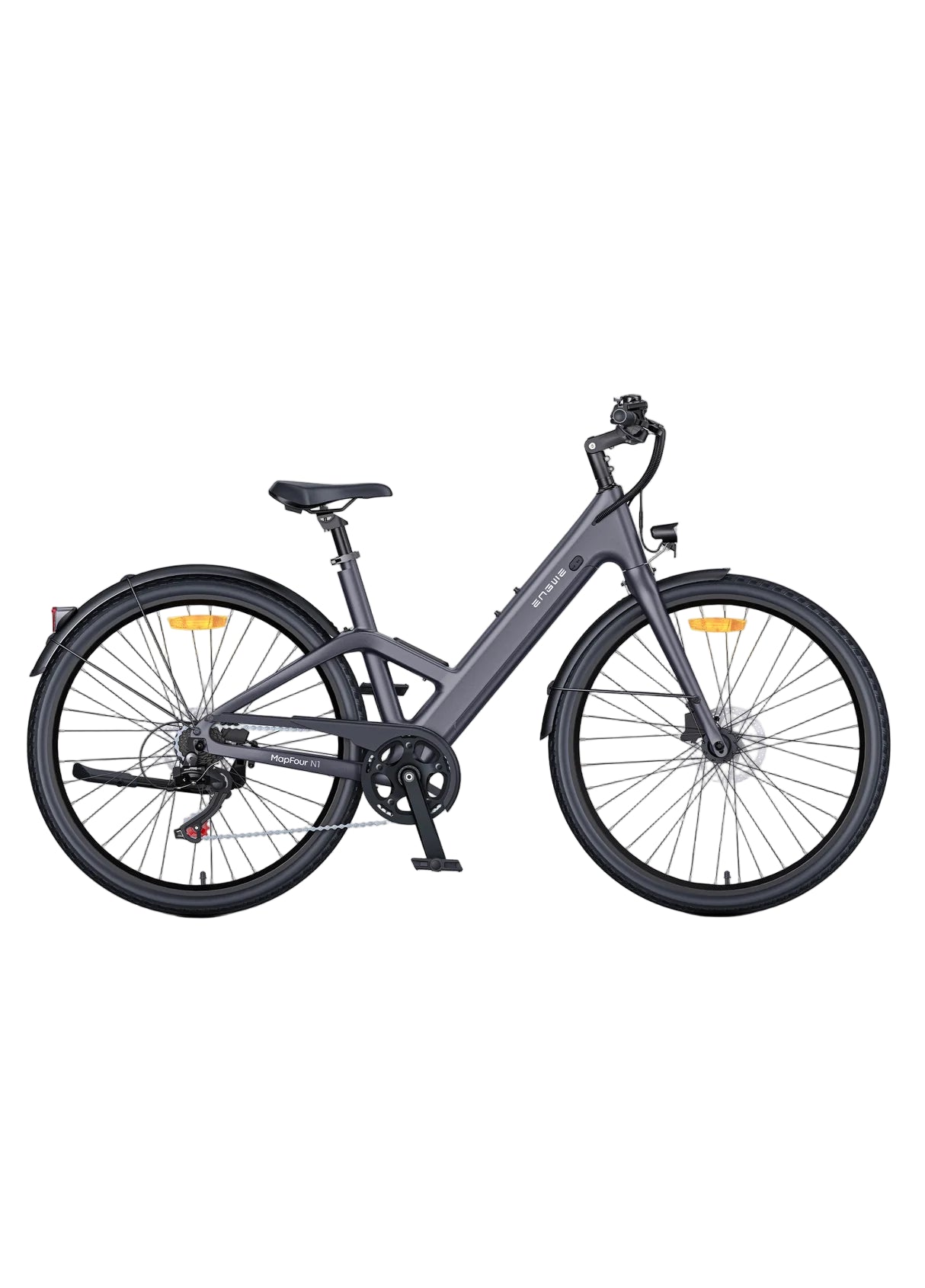

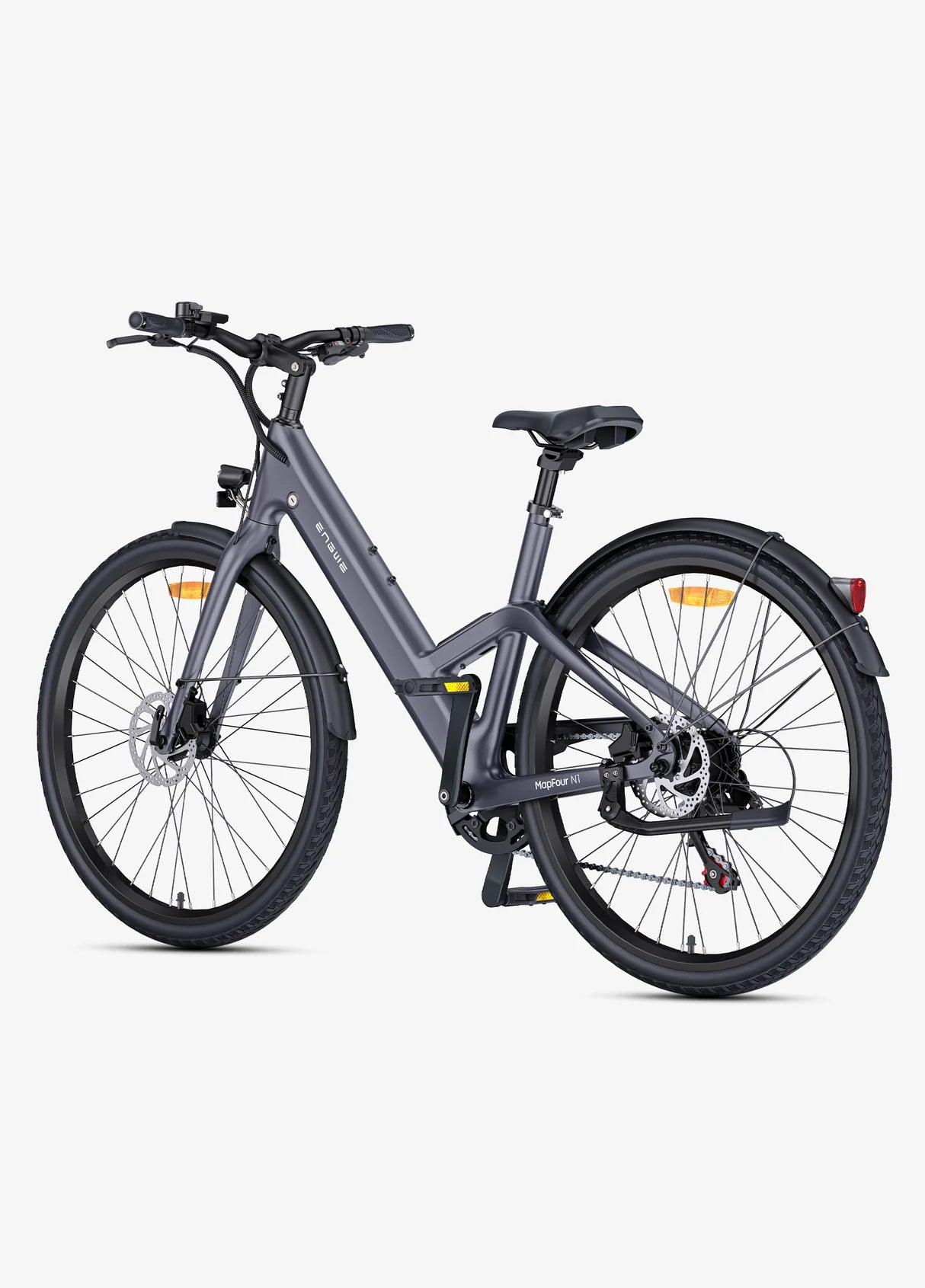

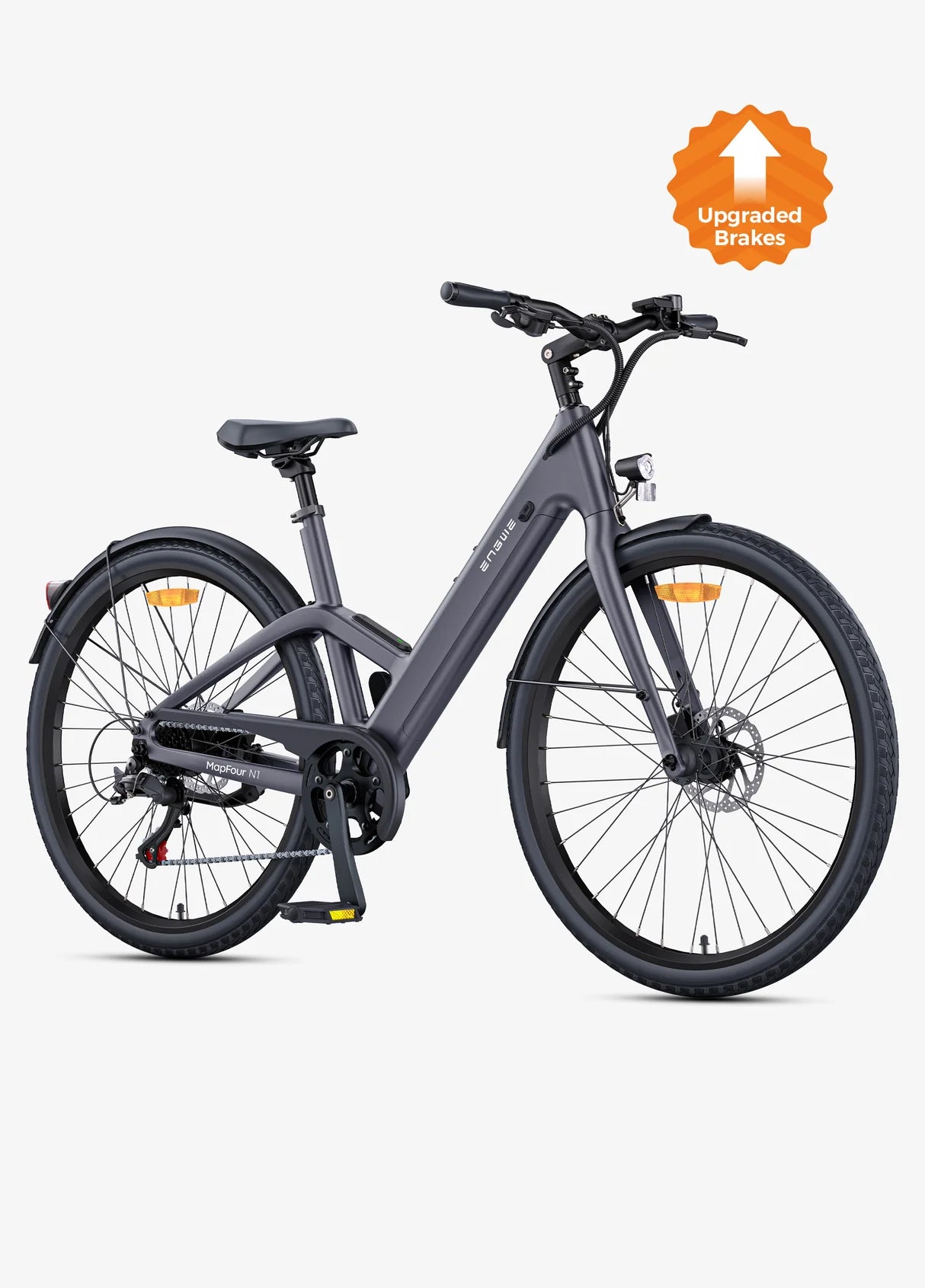

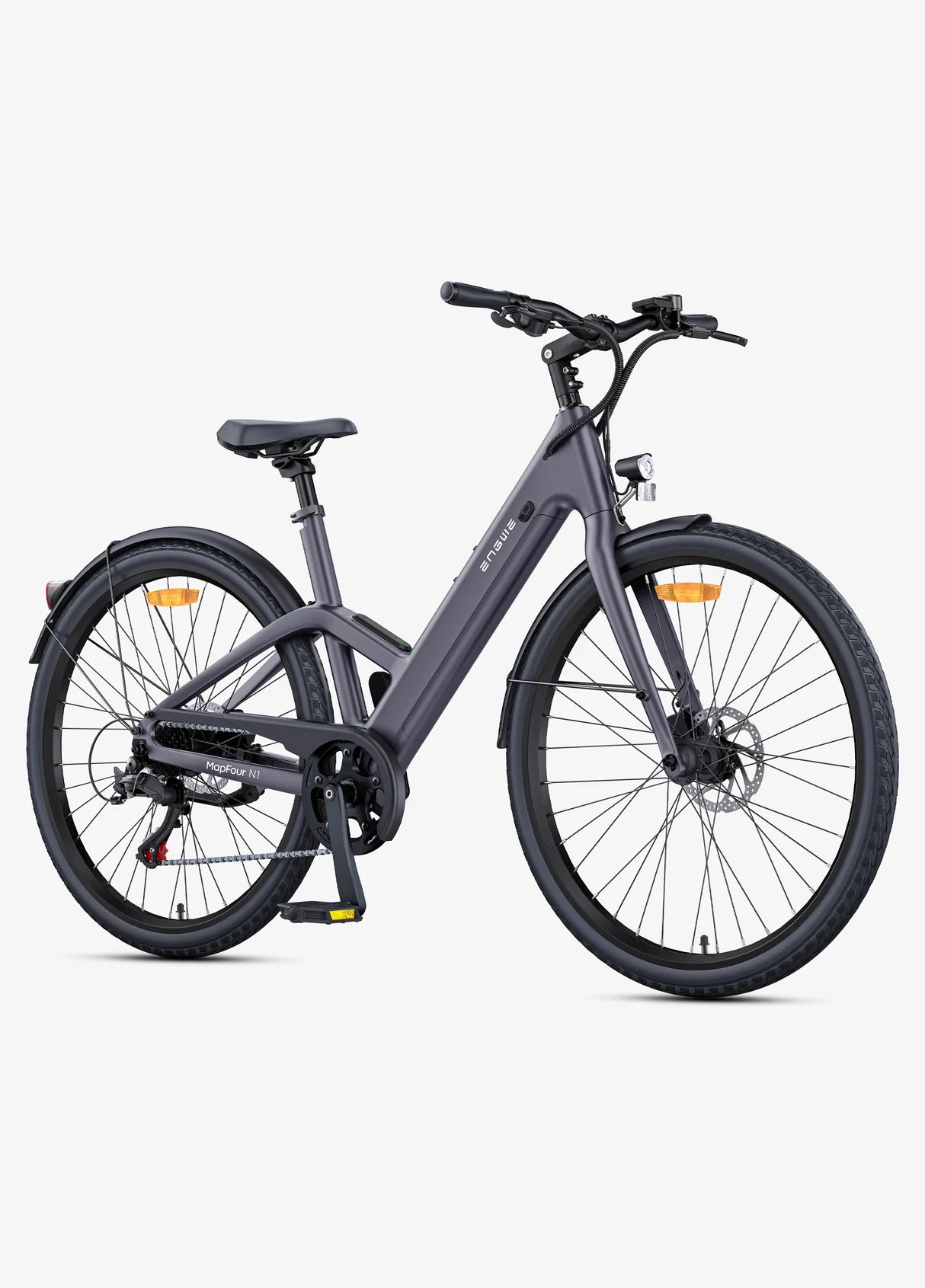

| N1 Air ST | Step-Through Frame | Effortless access and everyday comfort |
Both models share identical technical specifications with only the frame design differing.
| Motor | MIVICE M070 Rear Hub Motor (250W) | Sensor | Torque Sensor |
| Max Torque | 40 Nm | Battery | 36V 10Ah (360Wh) SAMSUNG Removable Lithium-ion |
| Speed | 25 km/h | Mileage | 100 km (PAS 1 level) |
| Charging Time | About 5-8H | Max Climbing | 10° |
| Frame | Carbon Fiber (Toray) | Fork | Aluminium |

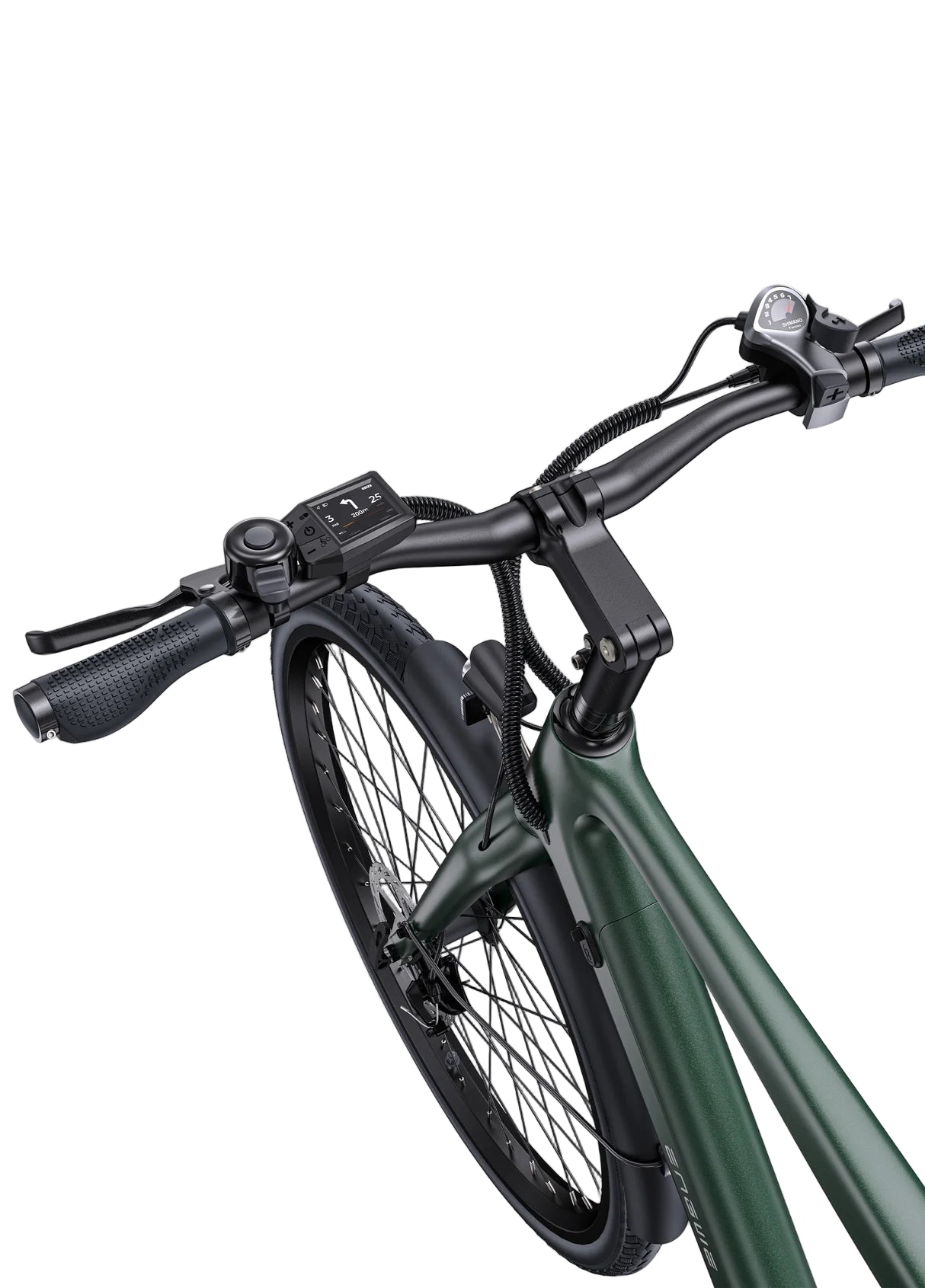

| Tires | 700×38C Spoke Tires | Display | LCD Color Display |
| Lights | Front Light & Solar Tail Light | Bike Weight | 15.6 kg (34.39 lbs) |
| Gross Weight | 25.4 kg (55.99 lbs) | Max Load | 120 kg (264.5 lbs) |
| iOT Features | Motion Detection, Geo-Fencing, GPS Tracking |
Key Features
• Ultra-lightweight carbon fiber frame at only 15.6 kg

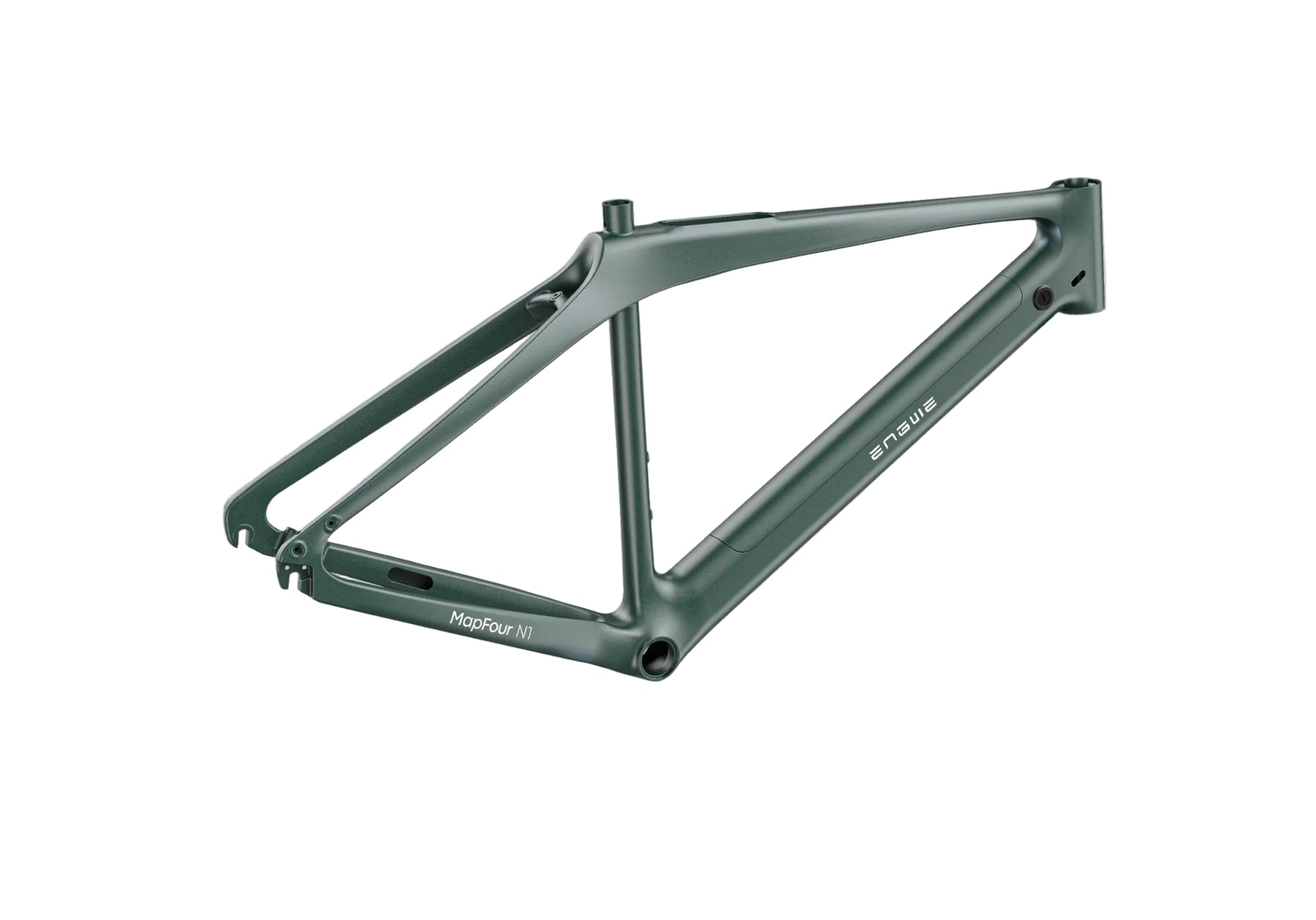

• Premium Toray carbon with monocoque molding
• Superior shock absorption for smoother rides
• Torque sensor for natural, responsive pedal assist
• Impressive 100 km range on PAS level 1
• SAMSUNG removable battery for easy charging
• Solar-powered tail light for eco-friendly visibility
• SHIMANO 7-speed transmission for versatile riding
• iOT anti-theft protection with GPS tracking
• Step-over frame for sporty performance

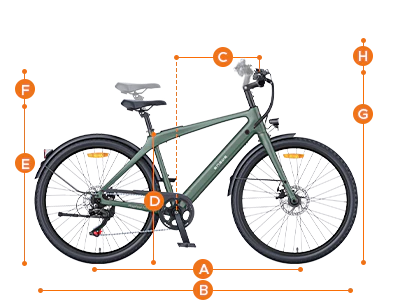

Size & Fit - N1 Air (Step-Over)
| A - Wheelbase | 110.5 cm |
| B - Total Length | 181 cm |
| C - Reach | 44 cm |
| D - Standover Height | 75.5 cm |
| E - Min Saddle Height | 82.5 cm |
| F - Max Saddle Height | 95 cm |
| G - Min Handlebar Height | 105 cm |
| H - Max Handlebar Height | 112 cm |
| Rider Height | 5.25 ft - 6.4 ft |
| Payload Capacity | 120 KG (264.5 lbs) |
| Package Dimensions (LWH) | 148.4 × 22.5 × 73 CM |
Note: There may be a difference of 0-5 CM between measured and actual data.
Size & Fit - N1 Air ST (Step-Through)
| A - Wheelbase | 109.1 cm |
| B - Total Length | 179.7 cm |
| C - Reach | 42 cm |
| D - Standover Height | 75.8 cm |
| E - Min Saddle Height | 84.5 cm |
| F - Max Saddle Height | 100 cm |
| G - Min Handlebar Height | 105 cm |
| H - Max Handlebar Height | 112 cm |
| Rider Height | 5.1 ft - 6.2 ft |
| Payload Capacity | 120 KG (264.5 lbs) |
| Package Dimensions (LWH) | 146.4 × 22.5 × 73 CM |
Note: There may be a difference of 0-5 CM between measured and actual data.
| Feature | N1 Air | Tenways CGO600pro | Cube Editor Hybrid Pro 400X |
| Frame | Carbon Fiber | Aluminum | Aluminium + Carbon Fork |
| Weight | 15.6 kg | 16 kg | 17.2 kg |
| Torque | 40 Nm | 40 Nm | 55 Nm |
| Battery | 360Wh | 360Wh | 400Wh |
| Range | 100 km | 100 km | — |
| iOT | Motion Detection, Geo-Fencing, GPS Tracking | — | — |
| Transmission | Shimano 7-Speed | Single Speed | Shimano 10-Speed |
EU Compliance
The ENGWE N1 Air is fully compliant with EU e-bike regulations:
1) Maximum Speed: 25 km/h (pedal assist)
2) Motor Power: 250W nominal
3) Battery: SAMSUNG 36V 10Ah (360Wh) removable lithium-ion
Always follow local cycling laws, wear appropriate safety gear, and ensure lights are functioning when riding in low visibility conditions.
