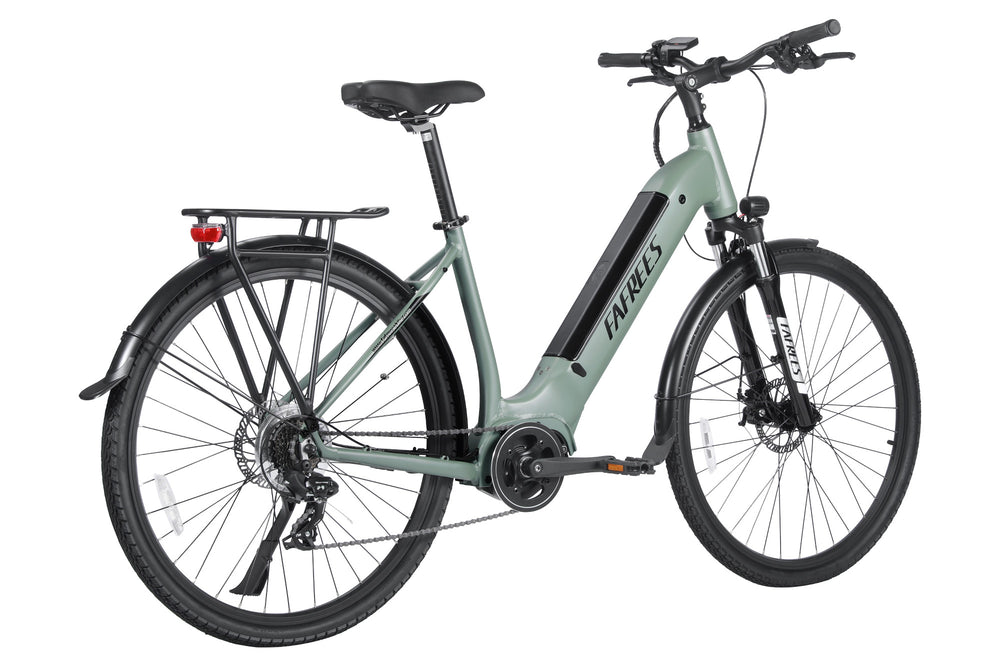

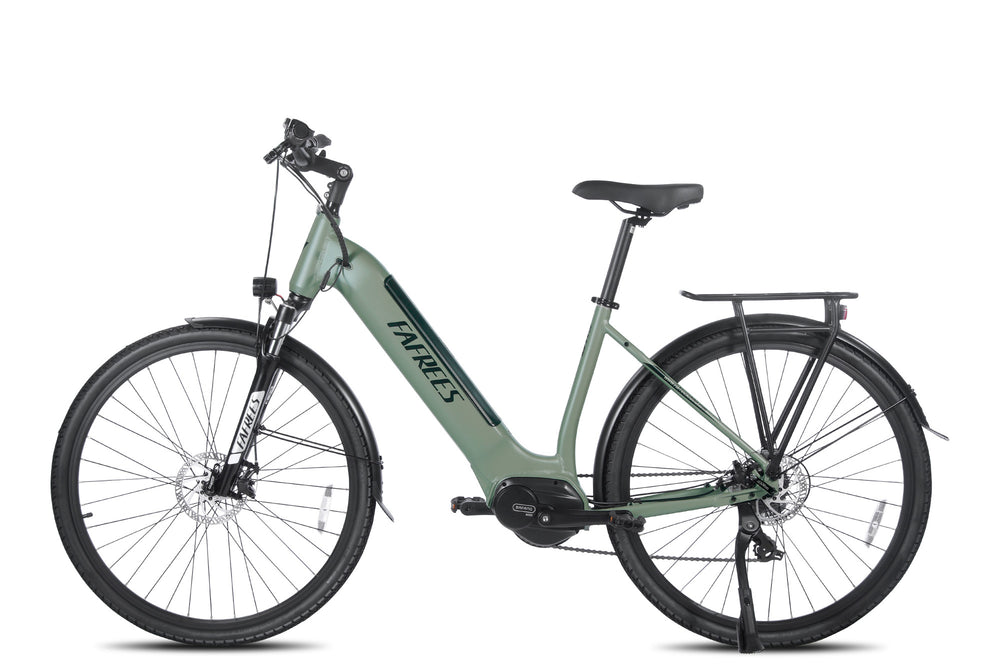

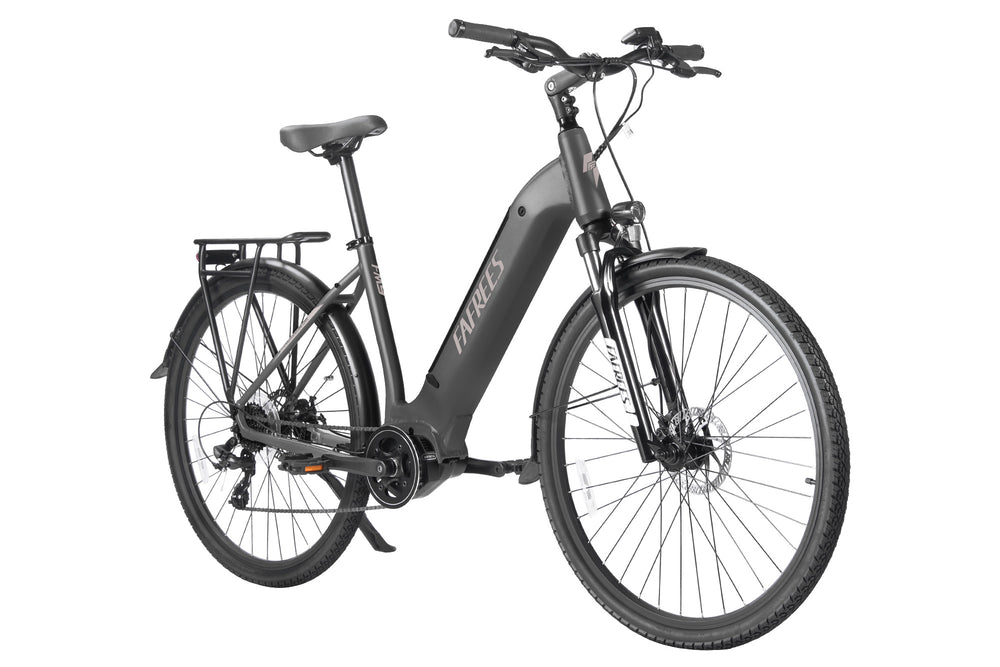

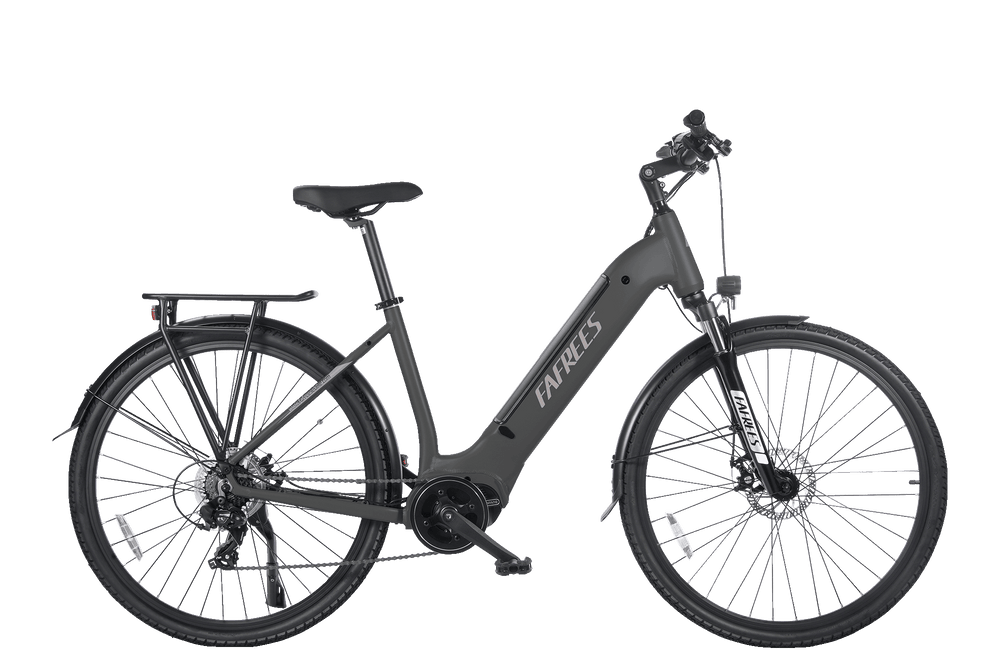

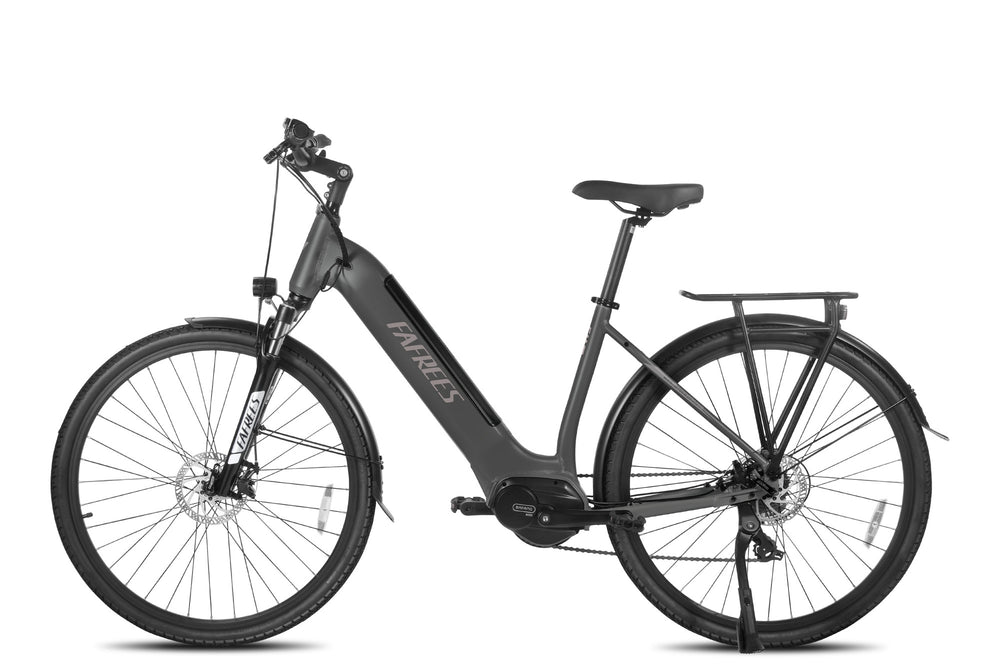

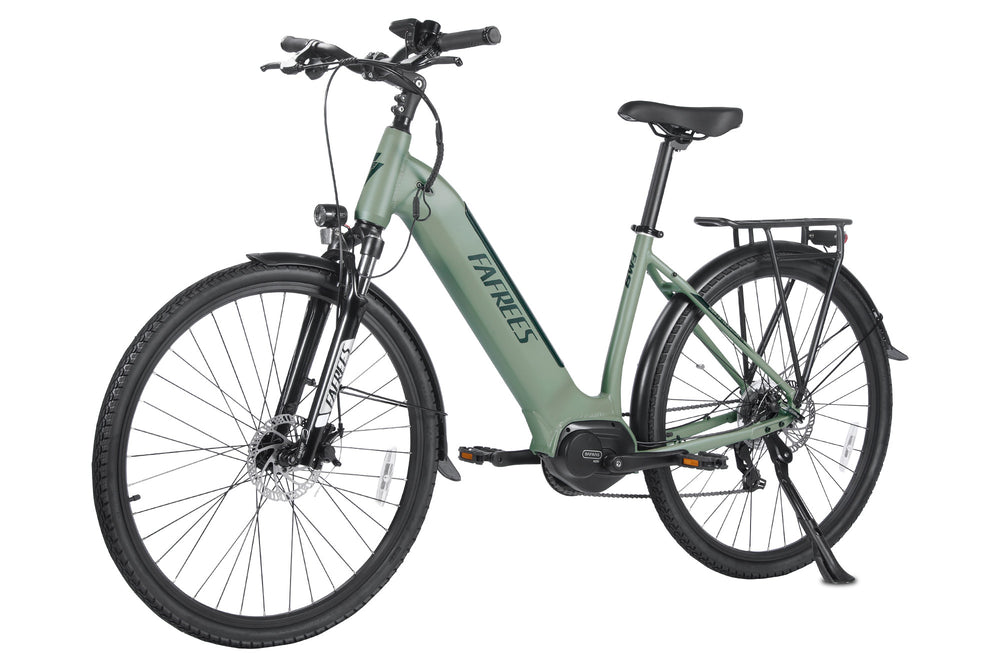

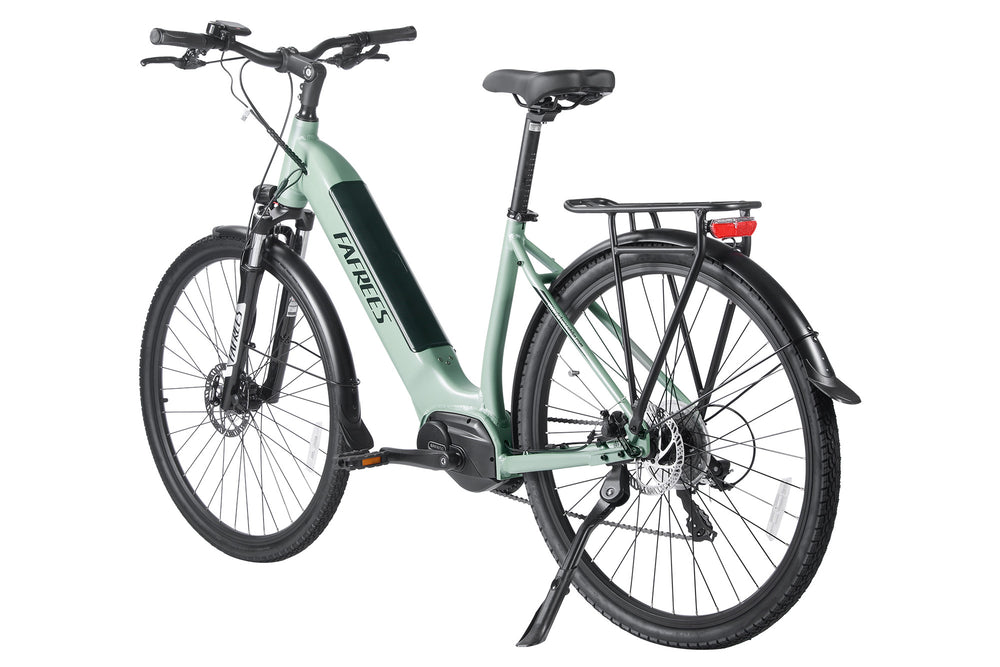

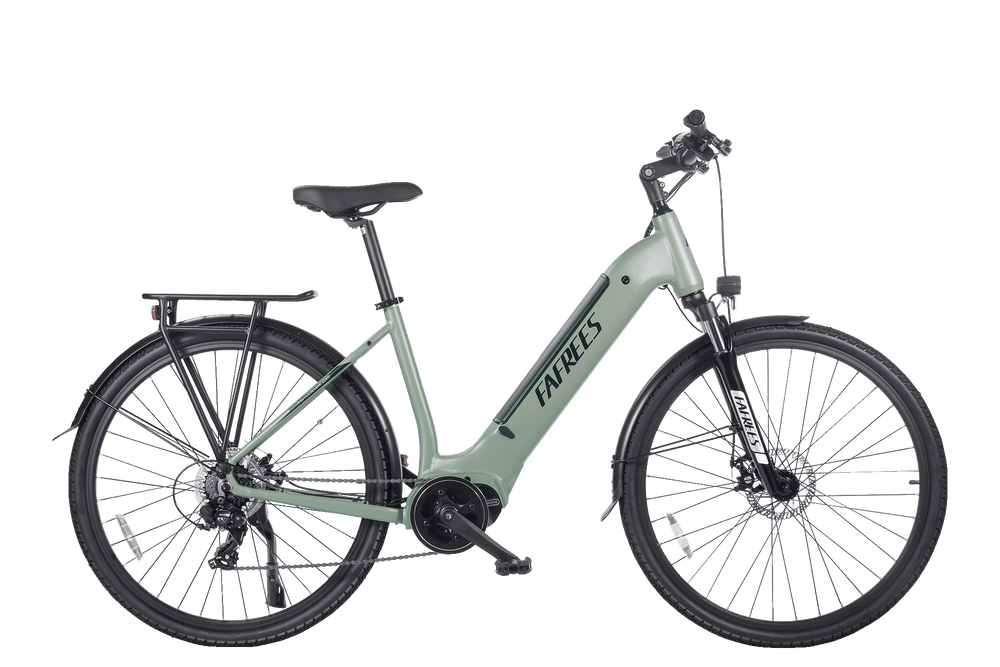

Fafrees FM9 Electric Bike
Mid-drive 250W City E-Bike with Hydraulic Suspension and Torque Sensor
36V 15Ah Battery | 65Nm Torque | 100–120 KM Range | 25 KM/H Default Speed | Hydraulic Suspension | 150 KG Payload
“Engineered for smooth urban rides.”
“Precision mid-drive performance.”
“Smart assist that adapts to your rhythm.”
“The premium commuter’s choice.”
Mid-Drive Power, Smooth Ride
The BAFANG M200 36V mid-drive motor delivers 250W sustained (350W peak) power with 65Nm torque for responsive acceleration and natural pedaling assistance.
Efficient Battery System
Equipped with a 36V 15Ah (540Wh) lithium-ion battery, providing a reliable range of up to 120KM on pedal assist and 100KM under mixed conditions.
Hydraulic Suspension Fork
The front fork with 63mm travel absorbs shocks from uneven roads, enhancing stability and comfort.
Smart Torque Sensor
The BAFANG torque sensor delivers precise pedal assistance based on your effort — for smoother, more intuitive riding control.
TEKTRO Mechanical Disc Brakes
Reliable, consistent braking performance in all weather conditions.
SHIMANO 7-Speed Transmission
Shift effortlessly for a wide range of gears, adapting to inclines or cruising with ease.
LED Lighting System
Bright front LED headlight and brake-activated taillight ensure visibility and safety for night rides.
Comfort-Focused Design
A custom ergonomic seat, adjustable handlebar height, and 6061 double-butted aluminum frame deliver comfort and durability for long commutes.
| Motor | 250W (Sustained), 350W (Peak) BAFANG M200 Mid-Drive | Torque | 65 Nm |
| Battery | 36V 15Ah (540Wh) Lithium-ion | Range | 100–120 KM |
| Max Speed | 25 KM/H (Default) | Pedal Assist | 5 Levels |
| Suspension | Hydraulic Fork, 63mm Travel | Transmission | SHIMANO 7-Speed |
| Tires | KENDA 700C × 45C | Frame | 6061 Double-Butted Aluminum Alloy |
| Brakes | TEKTRO Mechanical Disc Brakes | Display | BAFANG Smart LCD Display |
| Charger | 36V 3A Fast Charger (5–6 Hours) | Sensor | Torque Sensor |
| Weight | 26.2 KG | Payload | 150 KG |
| Wheelset | Double Walled Aluminum, 36H | Kickstand | Included, Rear Mount |
Size & Fit Guide
[A] Max Seat Height: 100 cm
[B] Min Seat Height: 86 cm
[C] Standover Height: 50 cm
[D] Frame Size: 48 cm
[E] Max Handlebar Height: 120 cm
[F] Min Handlebar Height: 111 cm
[G] Bottom Bracket Height: 23 cm
[H] Top Tube Length: 73 cm
[I] Wheelbase Length: 120 cm
[J] Total Length: 194 cm
Recommended Rider Height: 168–220 cm
The Fafrees FM9 meets European and UK e-bike standards for road use.
1. Max motor power: 250W, conforming to EN15194 standards.
2. Top assisted speed: 25 KM/H limit as per EU/UK e-bike regulation.
3. Certified for road compliance and safety with CE conformity.
